4.5 Baery Charge Current Seng
To congure the Protégé® SE Integrated System Controller manually for the charge current, select
the appropriate baery current limit seng using the jumpers as shown in gure 5 below.

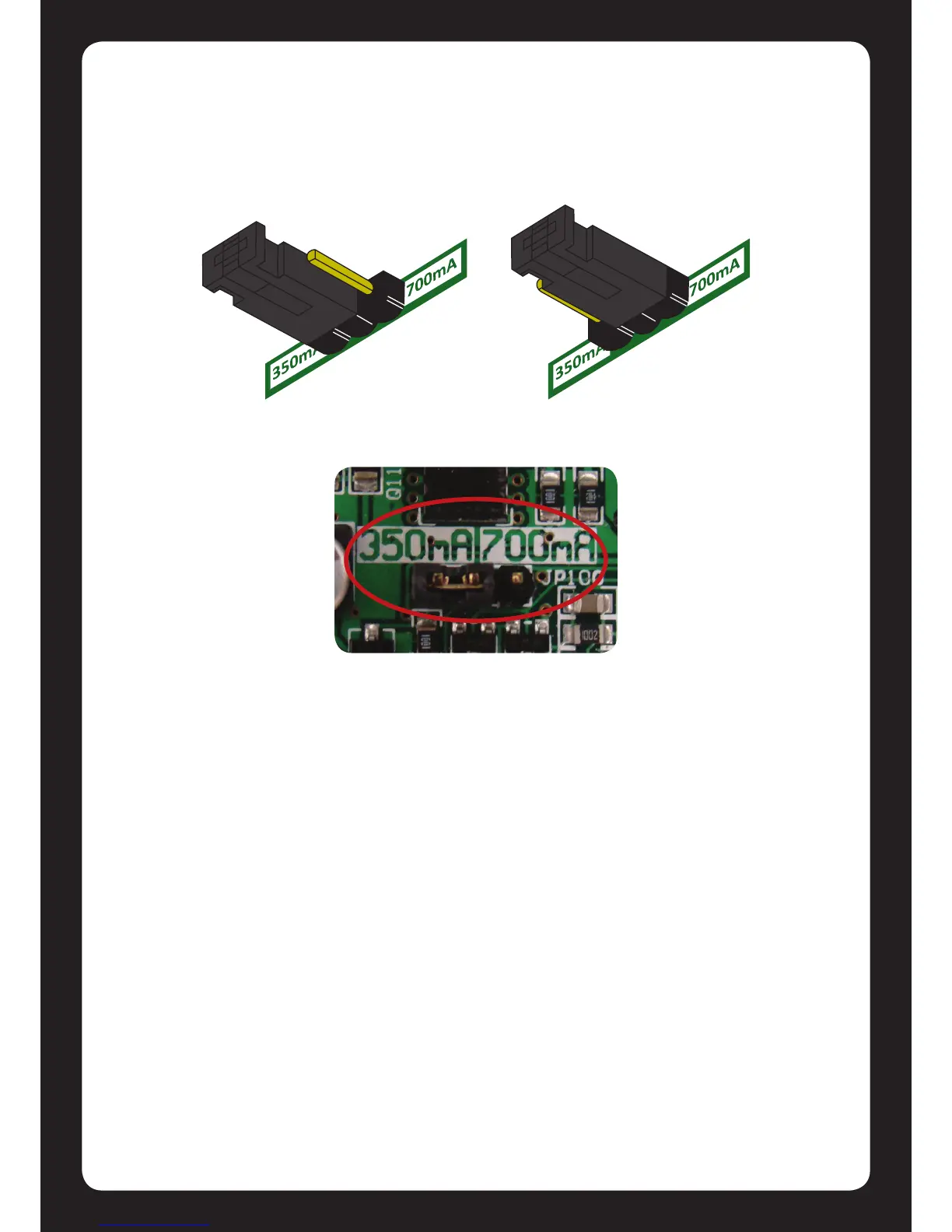

Figure 5 - Baery Charge Jumper
Figure 6 - Jumper Locaon
350mA 700mA
