4.7 Encrypted Module Network
The Protégé® SE Integrated System Controller incorporates technically advanced encrypted RS-485
communicaons technology. The isolated communicaons interface oers full galvanic isolaon to
prevent ground loop noise and cross phase ground dierenal. The communicaon oers superior
interference immunity. Connecon of the communicaons should be performed according to the
following diagram.

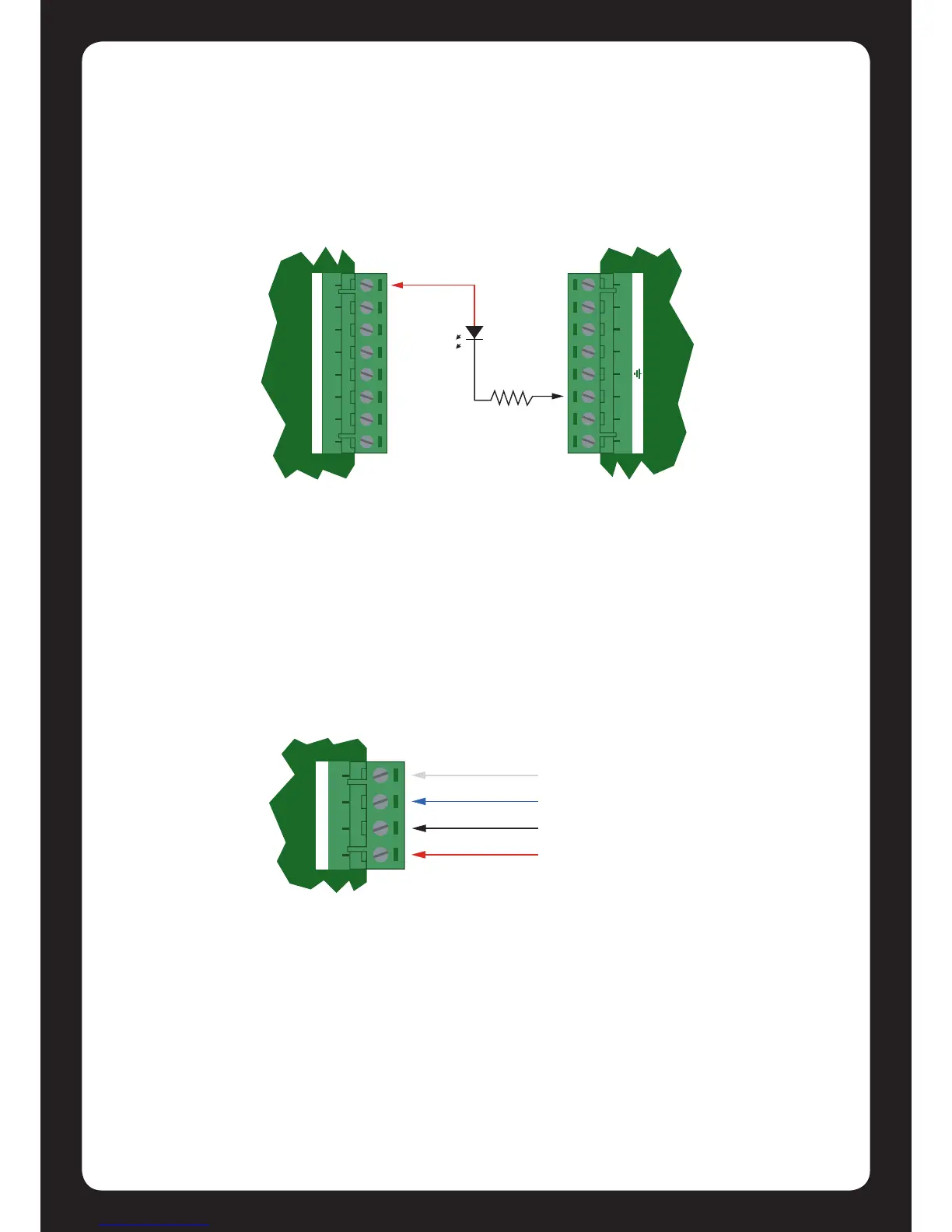

Figure 8 - Standard Communicaon Connecon
4.6 Status Indicator
The Status Output will acvate according to the status indicator on the Protégé® SE Integrated
System Controller and can be used to provide signalling or indicaon of the Protégé® SE Integrated
System Controller status outside the enclosure. The following diagrams show the connecon of an
LED indicator to the Status Output.
Figure 7 - External Status LED Connecon
AC AC B+ B- ST TP TP
1K5 OHM
LED
+AUX- Z1 COM COMZ2 Z3 Z4
NAN+ N- NB
Networt communica�ons input
from the Protégé® SE Integrated
System Controller or previous
Protégé® module
