11.0 Mechanical Layout
The mechanical layout shown below outlines the essenal details needed to help ensure the
correct installaon of the Protégé® SE Integrated System Controller.
2mm
183mm
93.5mm 81.5mm
175mm
76.5mm 98.5mm
PRT- CTRL-SE
112.2mm
234mm
225mm
113.6mm
5mm diameter

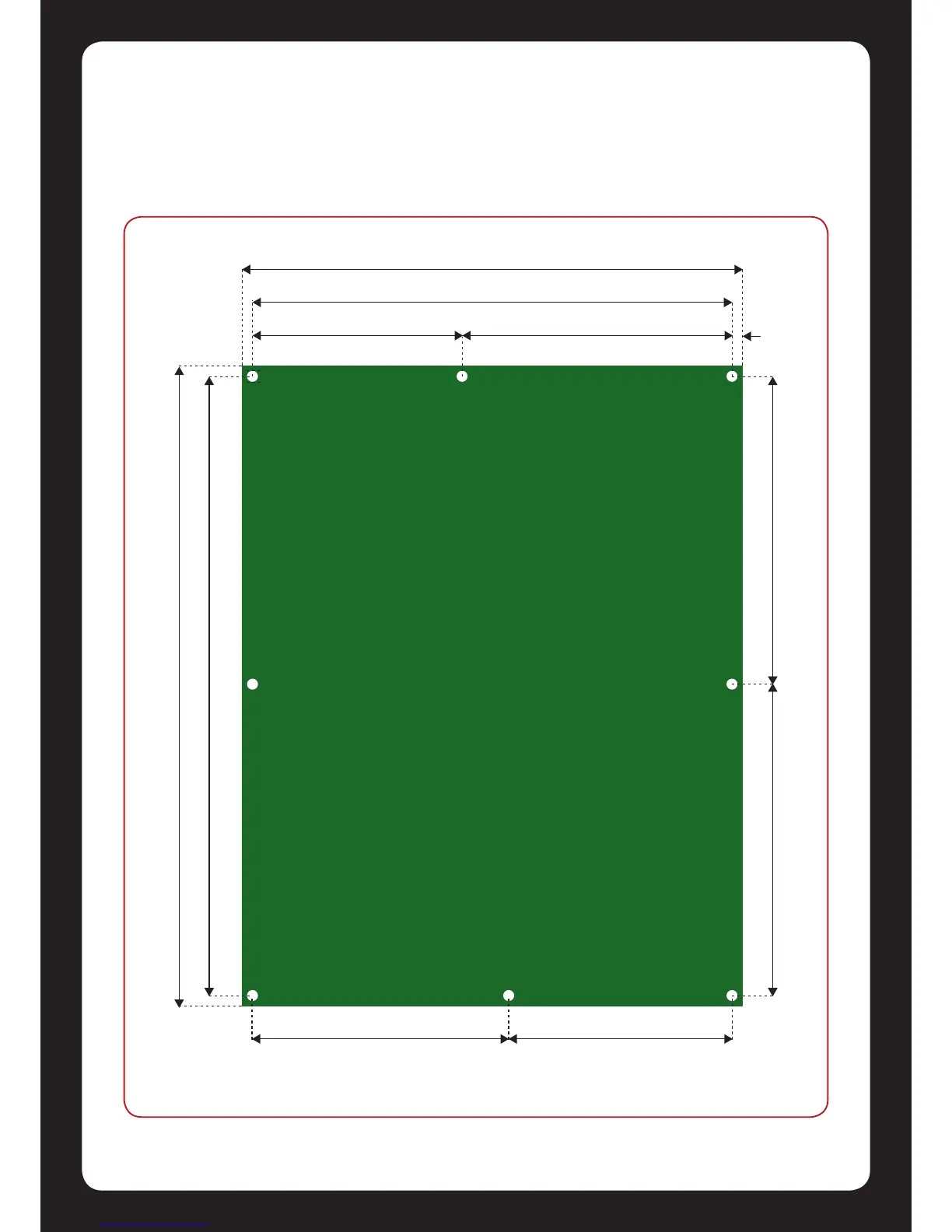

Figure 27 - Mechanical Layout
