Tsunami QB-8100 Series (100 Mbps/5 Mbps Models) Installation and Management Guide 146

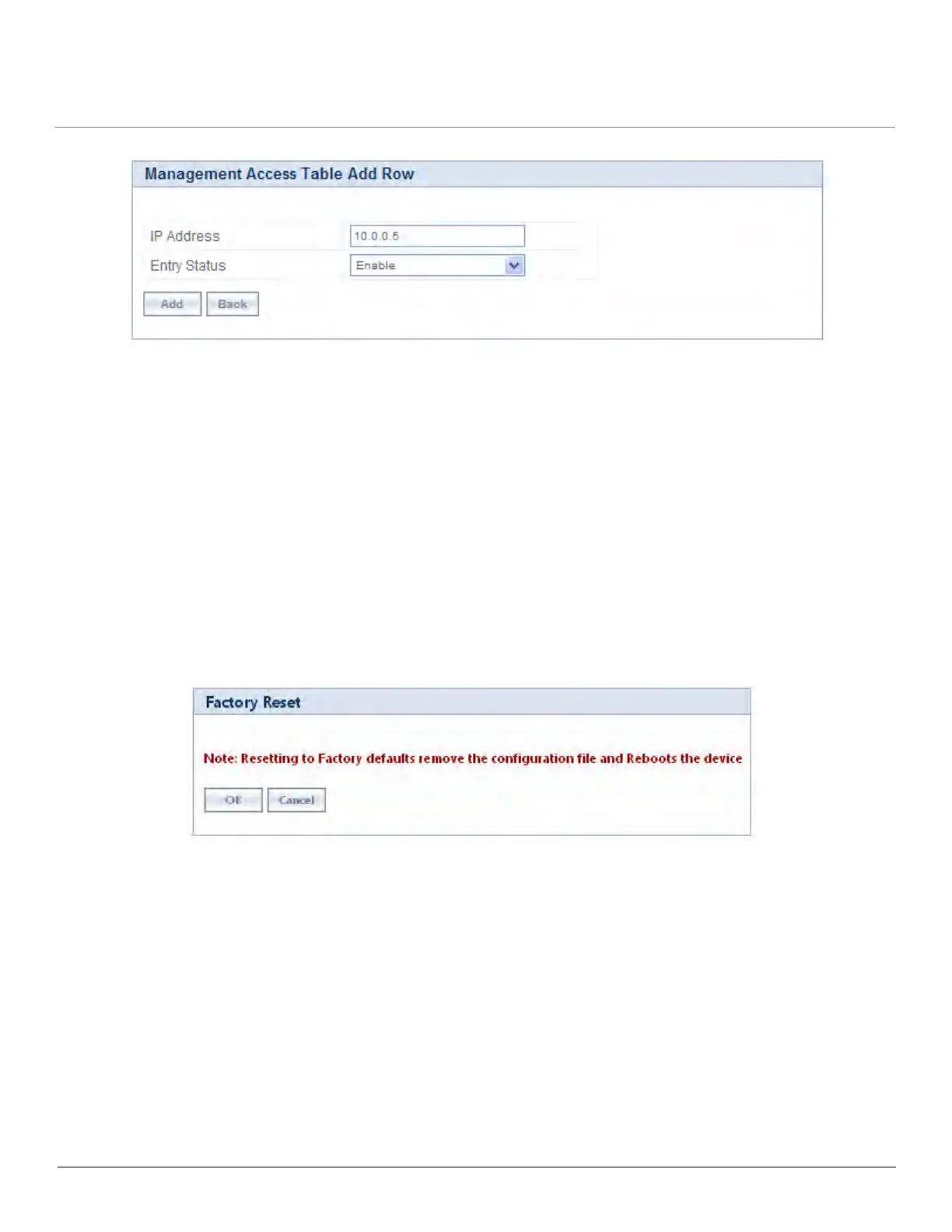

Figure 5-20 Management Access Table Add Row
3. Enter the IP Address of the device.
4. Select Enable or Disable for the Entry status of the device.
5. Click Add.
Ensure that the IP address of the management PC that is used to manage the device is present in the table. Otherwise, you will
not be able to manage the device. If this case occurs, try to give the PC correct IP address for management; or else, the device
can be configured via the CLI over the serial port.
5.6 Reset to Factory
Click Reset to Factory to reset the device to its factory default state. This resets the network configuration values, including the
password, IP address, and subnet mask.
• Device will reboot automatically after clicking on the Reset To Factory Defaults. The device comes up with default
configurations after reboot.
Figure 5-21 Factory Reset
