Monitoring the System
Tsunami QB-8100 Series (100 Mbps/5 Mbps Models) Installation and Management Guide 171
6.9 Tools
6.9.1 Link Test
WORP Link Test shows, in graphical form, Signal and Noise levels at which packets are received at local and remote unit.
WORP link test feature is used to monitor the local/remote signal/noise/SNR details of the connected WORP link. During
antenna alignment, this feature can be enabled to monitor the min/cur/max signal details.
NOTE: Internet Explorer 6.0 and its above versions support the link tests.
To view WORP Link Test Statistics, click MONITOR > Tools > Link Test.

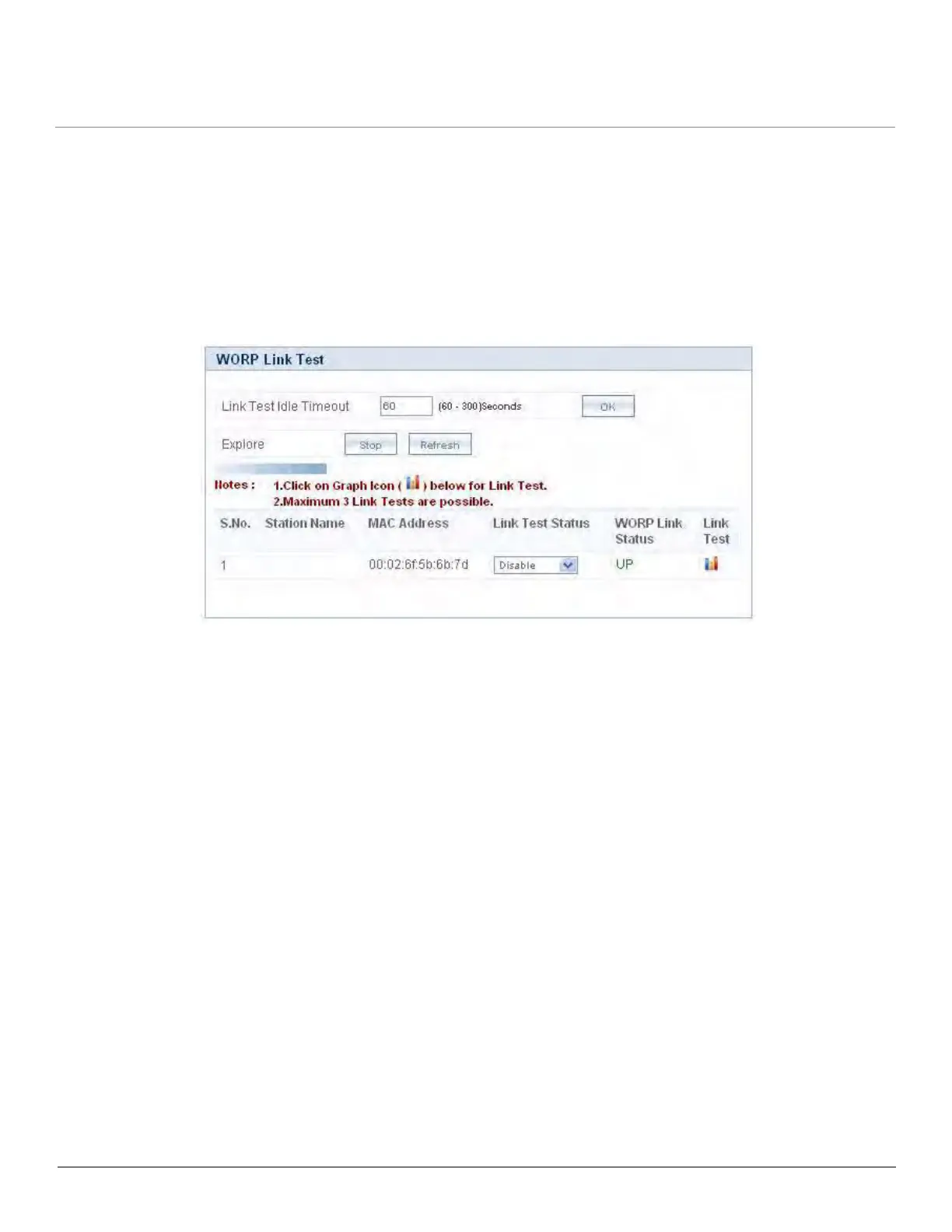

Figure 6-19 WORP Link Test
Click Explore Start to explore the established WORP links. Click Refresh to list the details of the registered End Point B.
Please note that only one End Point B gets registered to the associated End Point A. To view the details of a particular End
Point B, select its Link Test Status as Enable. Clicking the Graph icon provides the local/remote station information. After
starting the link test explore, if the user moves out of this page before stopping, exploration is automatically stopped after
Link Test Idle Timeout.
When you set the Link Test Idle Timeout value, the exploring process automatically stops on the given timeout value if you
navigate out of the web page. The default Link Test Idle Timeout is 300 seconds.
The following figure displays the graph for Local/Remote Station information, such as Station Name and MAC address of
both End Point A and End Point B.
