4.11.1.1 Adding Static Route Entries
To add Static Route entries
1. Click Add in the Static Route Table screen. The Static Route Table Add Row screen is displayed as shown below.

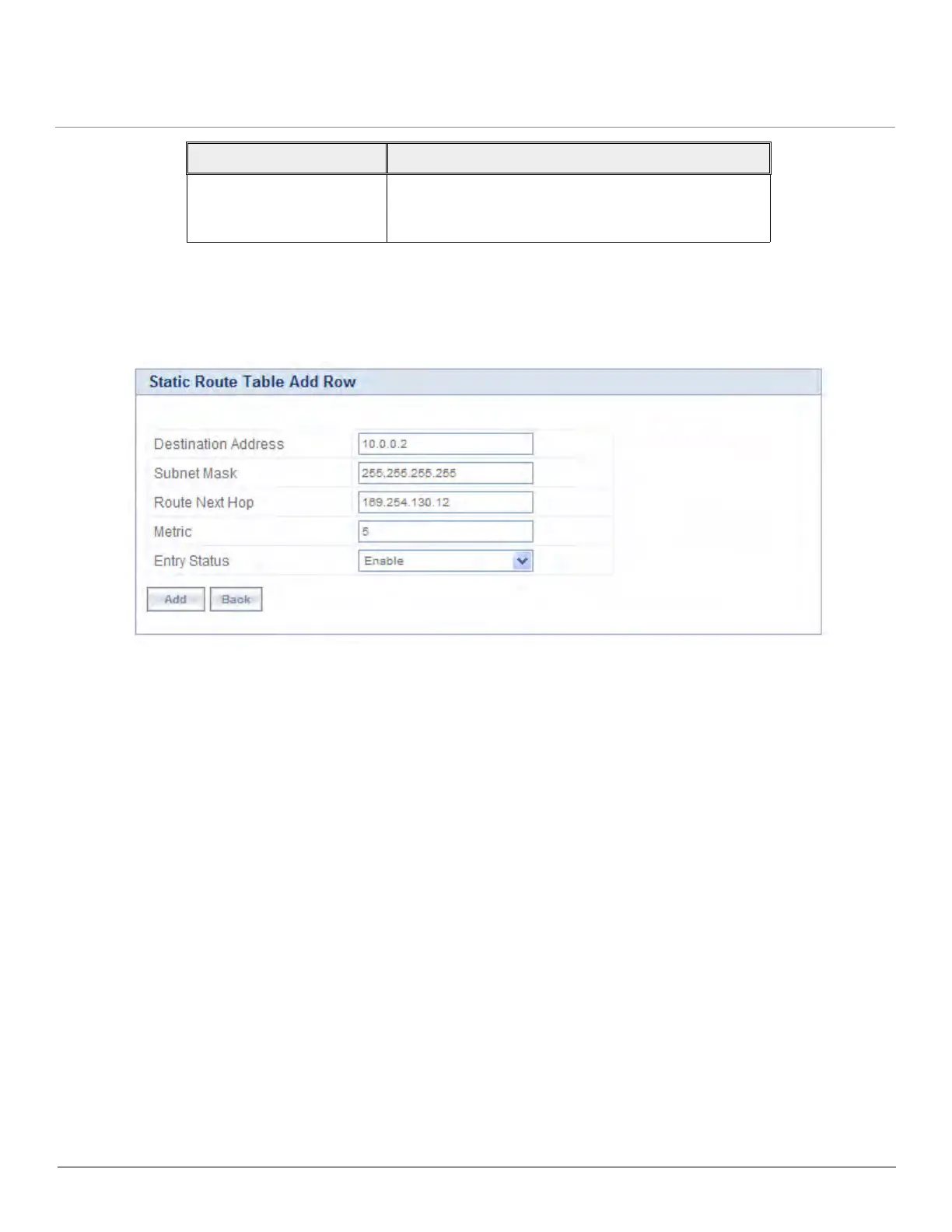

Figure 4-66 Static Route Table Add Row
2. After adding the entry into the Static Route table, click Add.
3. Click COMMIT for the changes to take effect.
NOTE:
• Maximum 256 entries can be added to the static route table.
• While adding a new entry, the IP address of the Next Hop must be on the subnet of one of the device’s network
interfaces.
4.11.2 NAT (End Point B, Routing Mode Only)
The NAT (Network Address Translation) feature allows hosts on the Ethernet side of the End Point B to transparently access
the public network through the End Point A. All the hosts in the private network can have simultaneous access to the public
network.
The End Point B supports NAPT (Network Address Port Translation) where all private IP addresses are mapped to a single
public IP address and does not support Basic NAT (where private IP addresses are mapped to a pool of public IP addresses).
Both dynamic mapping (allowing private hosts to access hosts in the public network) and static mapping (allowing public
hosts to access hosts in the private network) are supported.
1. Static NAT: Static mapping is used to provide inbound access. The End Point B maps the public IP address and its
transport identifiers to the private IP address (local host address) in the local network. This is used to provide inbound
access to a local server for hosts in the public network. Static port mapping allows only one server of a particular type.
Up to 100 entries are supported in the static port bind table.
Entry Status This parameter is used to configure the status of the
static route. Only enabled routes are considered for
routing the packets.
Parameter Description
