OPTALIGN smart RS5 BT handbook
106
With the four foot values, the shimming corrections can be determined. Note that
these values are saved in the file along with the dimensions, measurement and results,
and appear in the printed report.

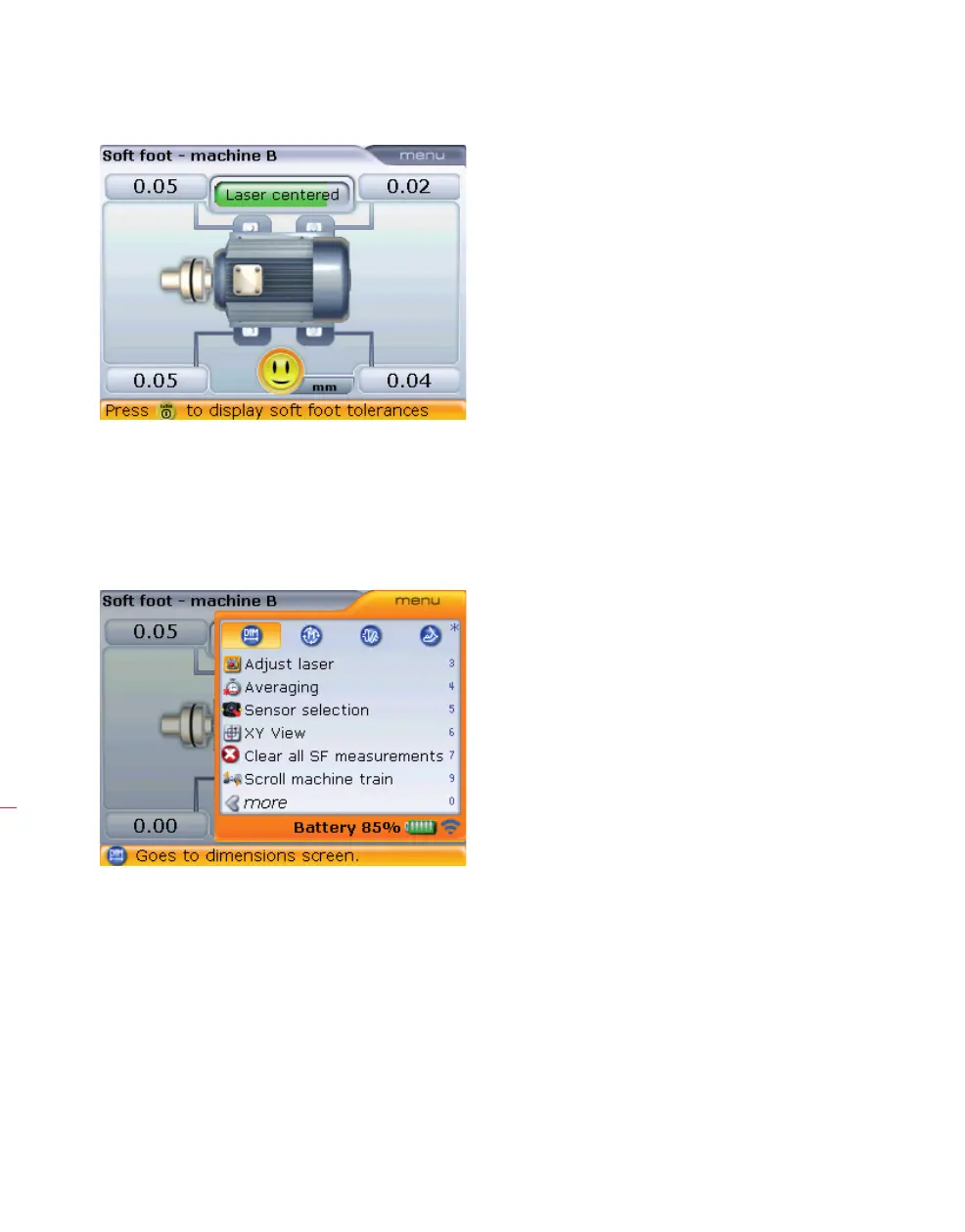

The “Soft foot” screen context menu items may be used to carry out the displayed
functions.
The set soft foot tolerance
is 0.06 mm (0.002”). The
happy Smiley indicates that
the measured soft foot
is within tolerance and
shimming corrections are
not necessary.
The context menu items
‘Clear all SF measurements’
and ‘Pipe strain wizard’
toggle depending on
whether soft foot values are
available or not.
