PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

117

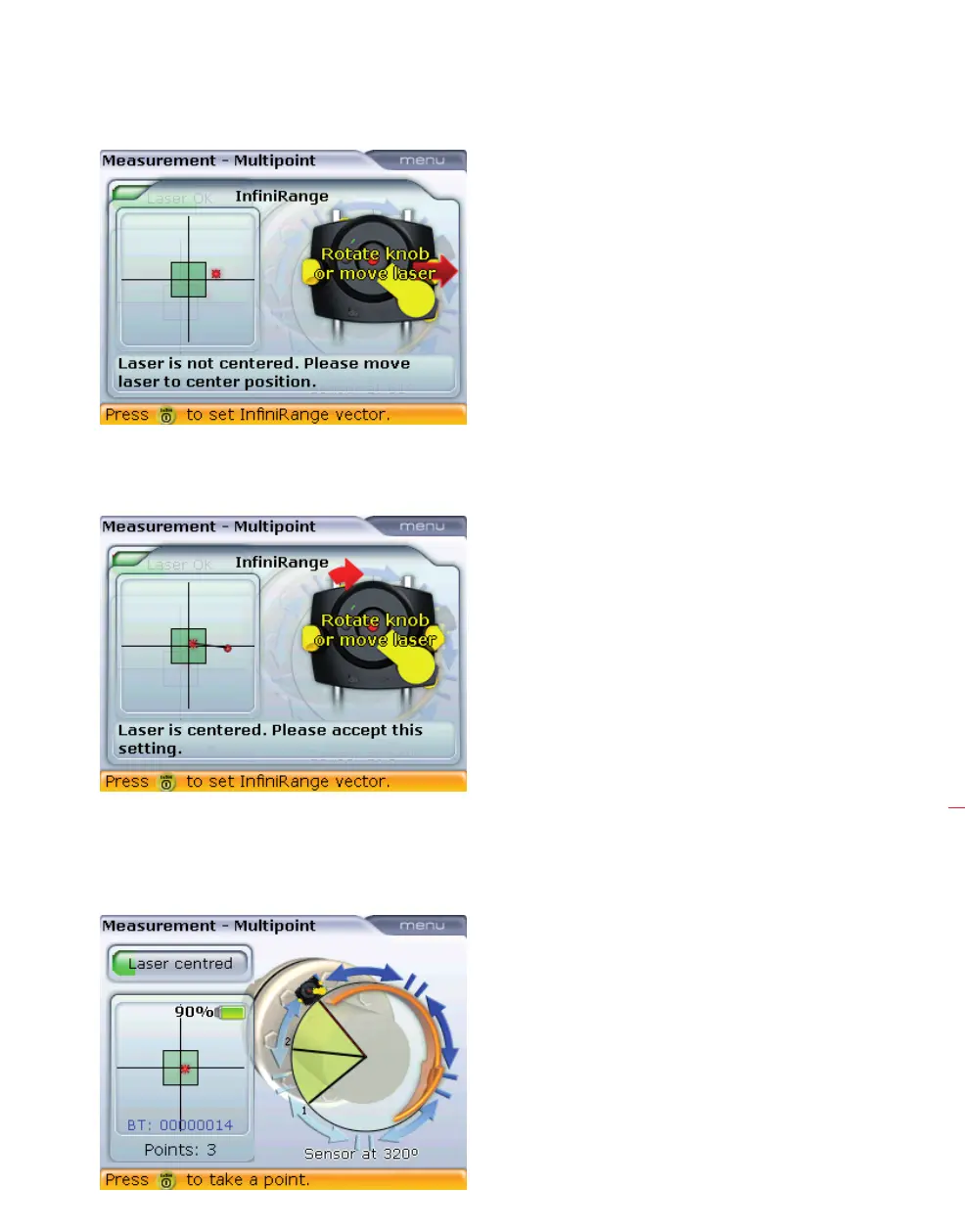

3. Readjust the beam into the target circle using the yellow laser emitter
adjustment thumbwheels.
4. On centering the laser dot, the blue system computer LED lights up. Press
e.
The adjusted beam position is automatically recorded and taken as the end point
of the readjustment.
CAUTION! Do not allow
shafts to turn during this
process.
Extend measurement range
