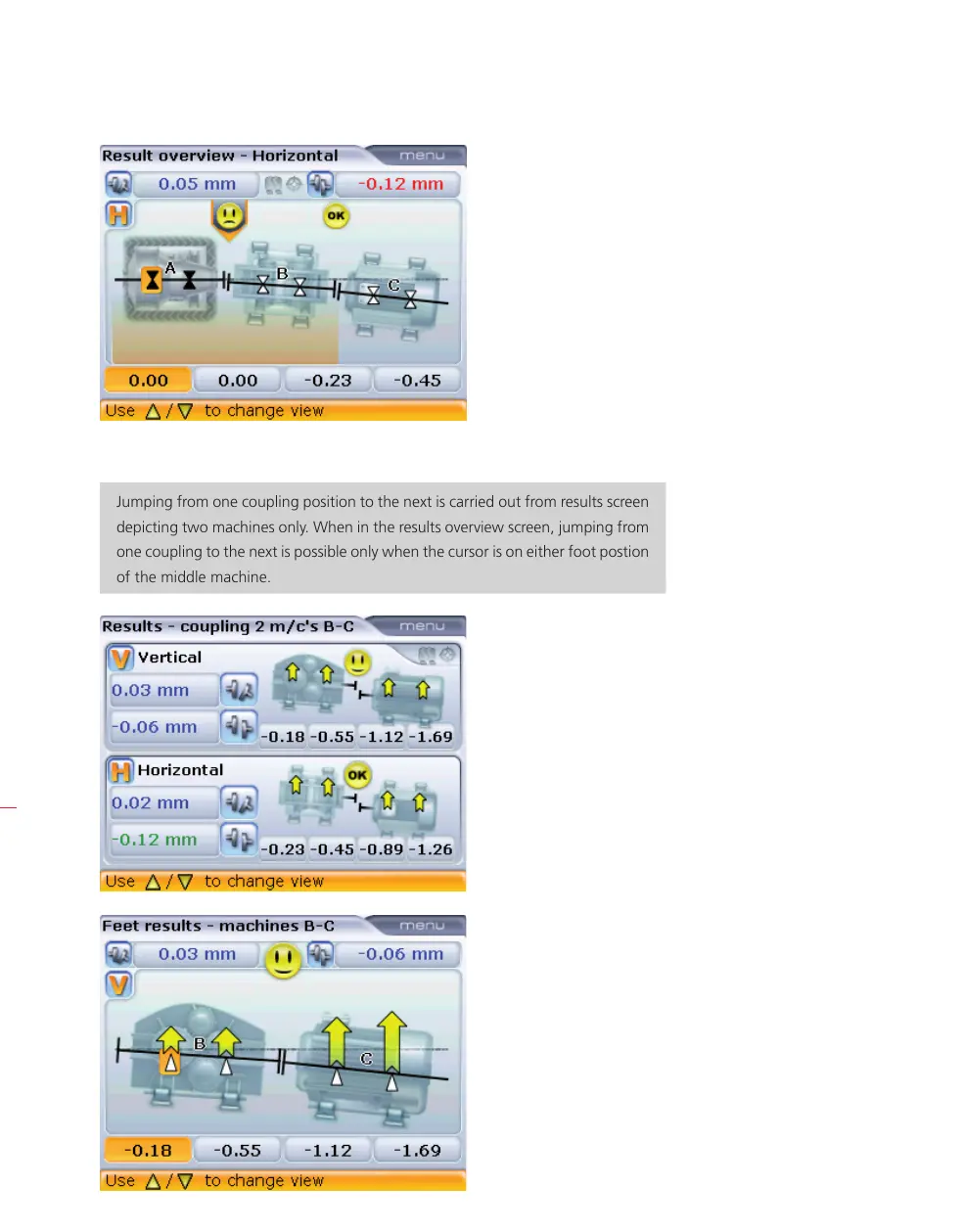

OPTALIGN smart RS5 BT handbook
128
Press and hold i/h to jump to the next coupling in the train.
Jumping from one coupling position to the next is carried out from results screen
depicting two machines only. When in the results overview screen, jumping from
one coupling to the next is possible only when the cursor is on either foot postion
of the middle machine.
Entire machine train
overview with horizontal
feet and coupling values
between machines A and B
H
Note
Vertical and horizontal feet,
and coupling values at the
coupling position between
machines B and C
Vertical feet and coupling
values at the coupling
position between machines
B and C
