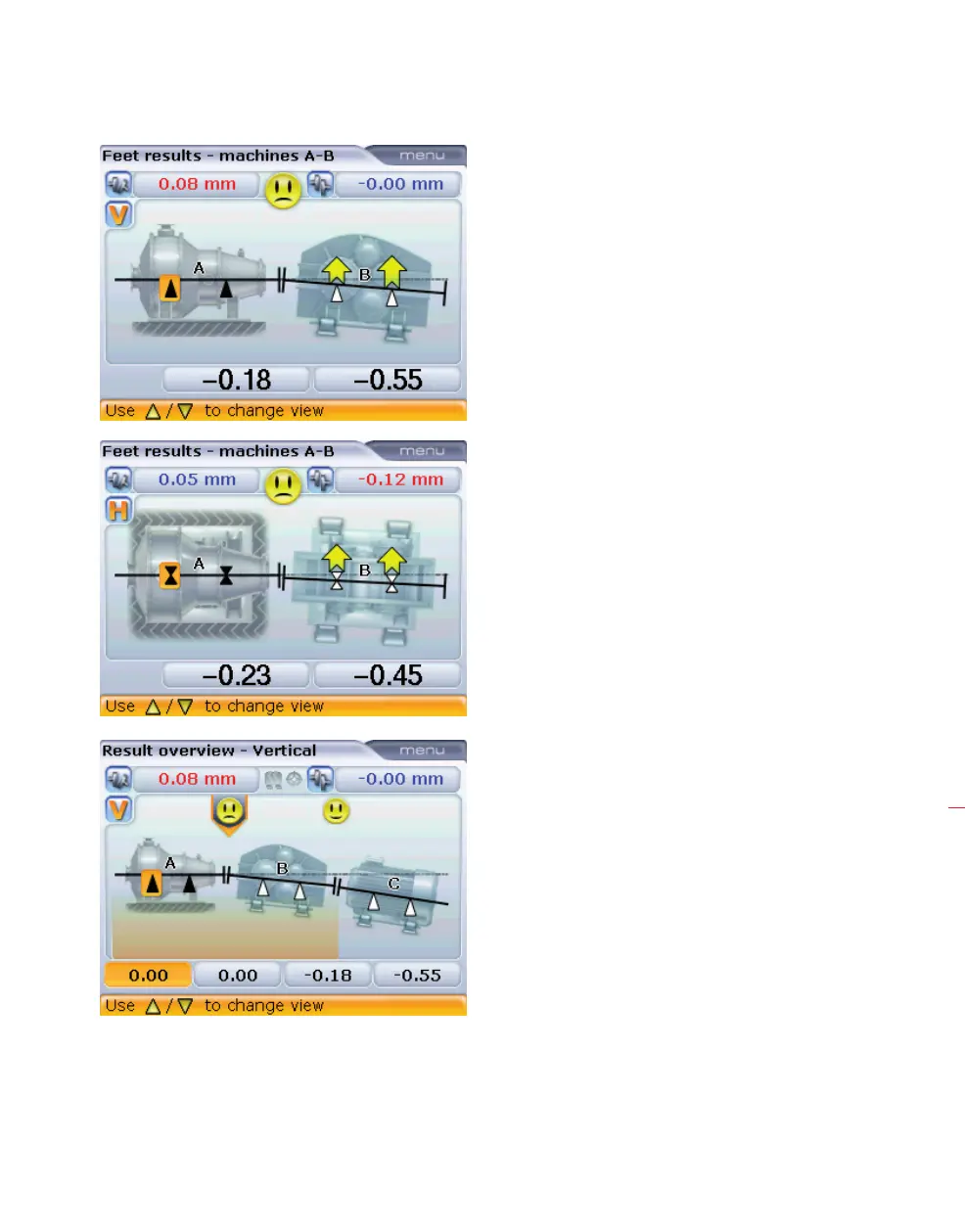

127
Vertical feet and coupling
values at the coupling
position between machines
A and B
Horizontal feet and coupling
values at the coupling
position between machines
A and B
Entire machine train
overview with vertical
feet and coupling values
between machines A and B
Machine train alignment
