7.1.5 Move corrections
After deciding on which pair of machines to move in a train, one may need to reinstall
and readjust the laser and sensor across the chosen coupling. Be sure to install the
sensor at exactly the same location on the shaft or coupling as previously, or reenter
the new correct distance from the sensor to the coupling.

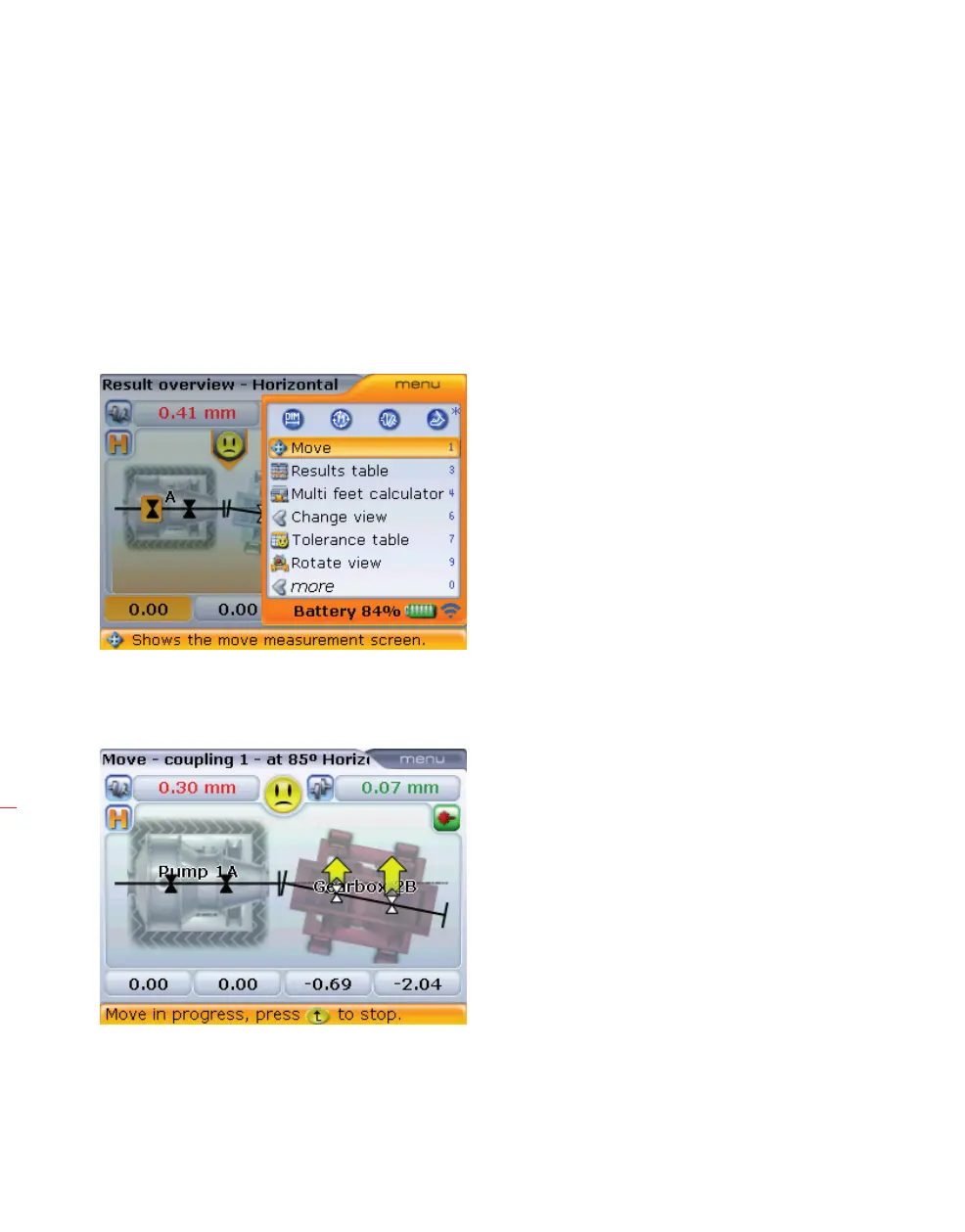

Correction of misalignment may be carried out using the Live Move function. While in
results screen, highlight the machines to be moved then press
q. The context menu
appears. Use
f/g to highlight ‘Move’.
Confirm selection by pressing
e. If the laser beam is centered, and either machine
is designated stationary, Live Move starts automatically.
If however, the pair of machines selected are both designated movable, then a hint
appears on the display requesting the designation of only one machine as movable.
Machine pair to be
moved can be selected in
“Dimensions” or “Results”
screens by pressing
h/i
long enough.
