OPTALIGN smart RS5 BT handbook
132

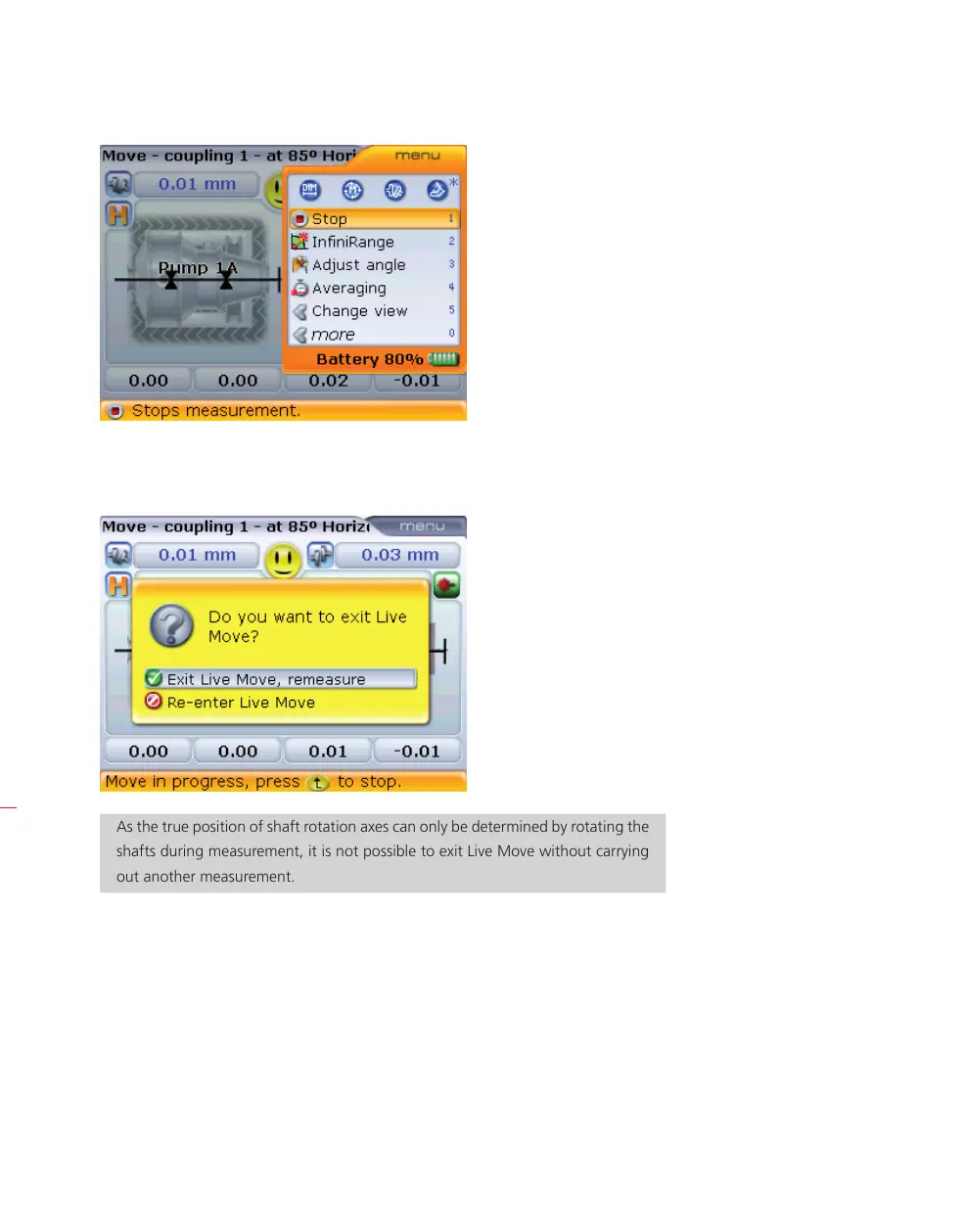

Press e to finish Live Move. A hint appears on the display requesting whether to
repeat move or exit and remeasure.
As the true position of shaft rotation axes can only be determined by rotating the
shafts during measurement, it is not possible to exit Live Move without carrying
out another measurement.
Remeasure to confirm the alignment condition. If the smiley returns a happy face, the
alignment condition is within tolerance and you may press
e to save measurement
results.
Use f/g to
highlight action to be
taken. Press
e to confirm
selection.
H
Note
