› iii) Confirm bolt pattern selection by pressing e.
7.3.5 Enter dimensions
Press
ß or d to return to the dimensions screen.

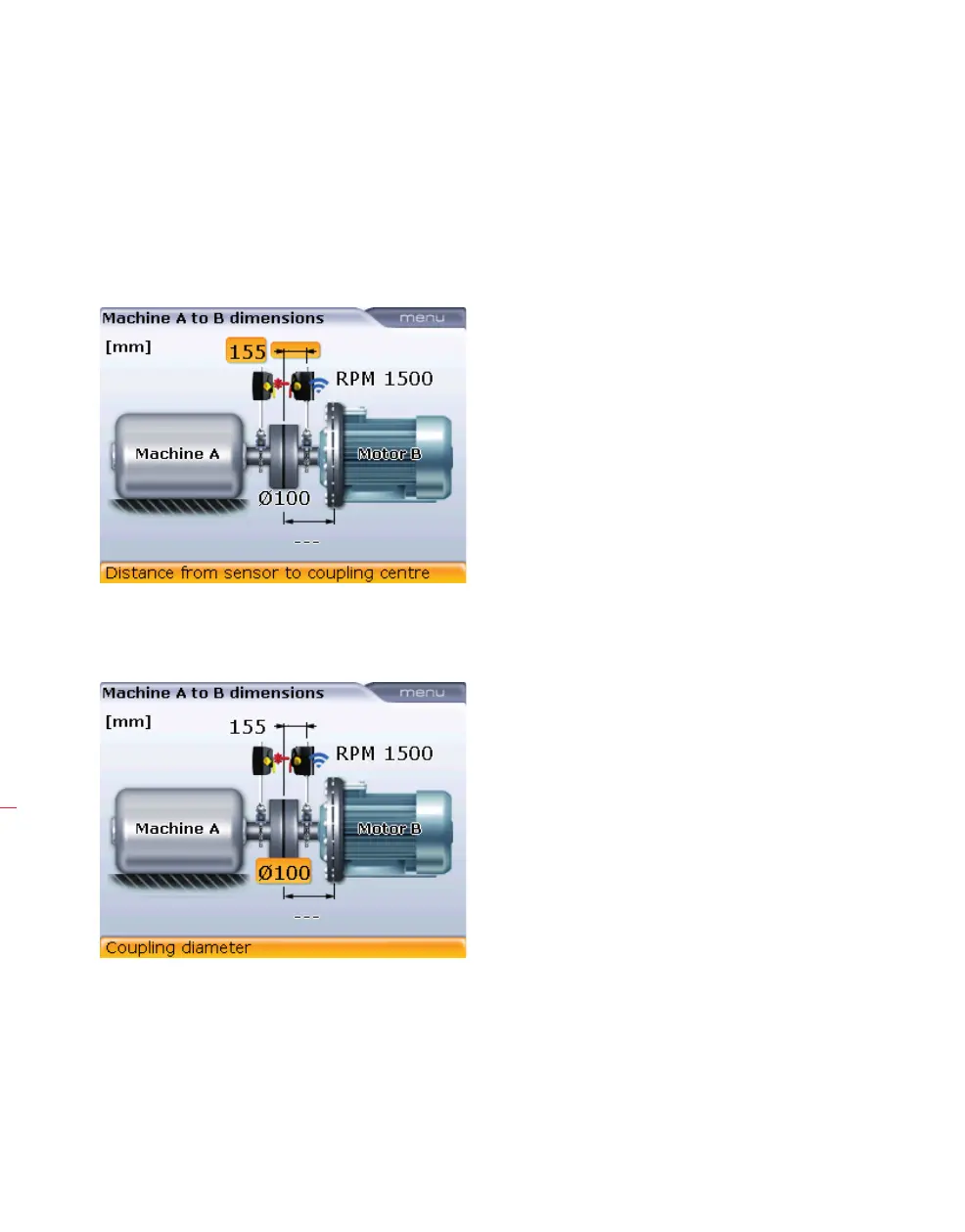

1. Enter the coupling center-to-sensor distance.
2. Enter the coupling diameter. The default is 100 mm (or 10” depending on unit
and language settings).
3. Enter the coupling center-to-flange distance.
