PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

OPTALIGN smart RS5 BT handbook
154

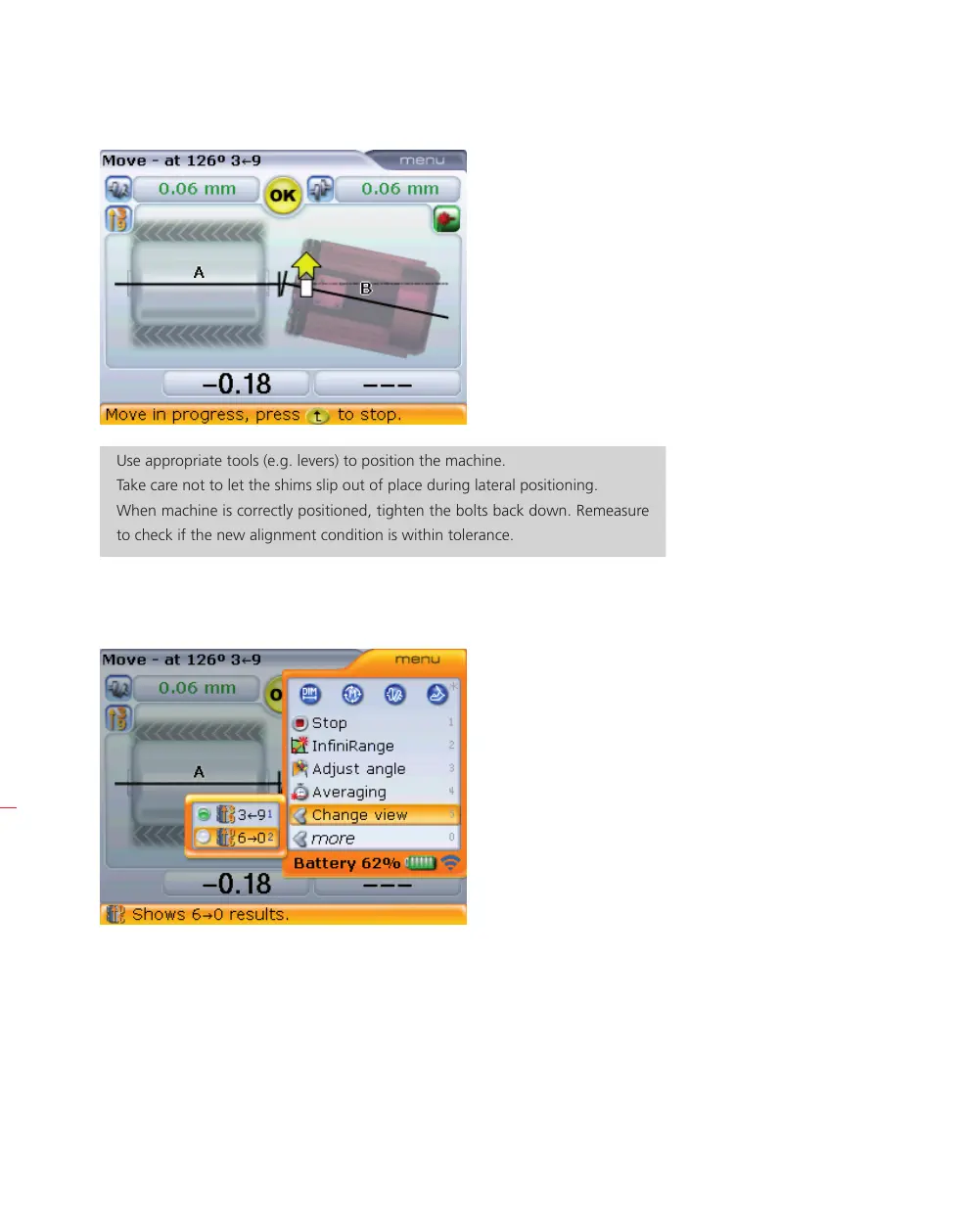

Use appropriate tools (e.g. levers) to position the machine.
Take care not to let the shims slip out of place during lateral positioning.
When machine is correctly positioned, tighten the bolts back down. Remeasure
to check if the new alignment condition is within tolerance.
The orientation of the Live Move may be changed via the context menu of the
“Move” screen.
HNote

PRÜFTECHNIK OPTALIGN smart RS5 BT Specifications

General

Brand	PRÜFTECHNIK
Model	OPTALIGN smart RS5 BT
Category	Laser Shaft Alignment Tools
Language	English
