Introducing OPTALIGN smart RS5 BT
21

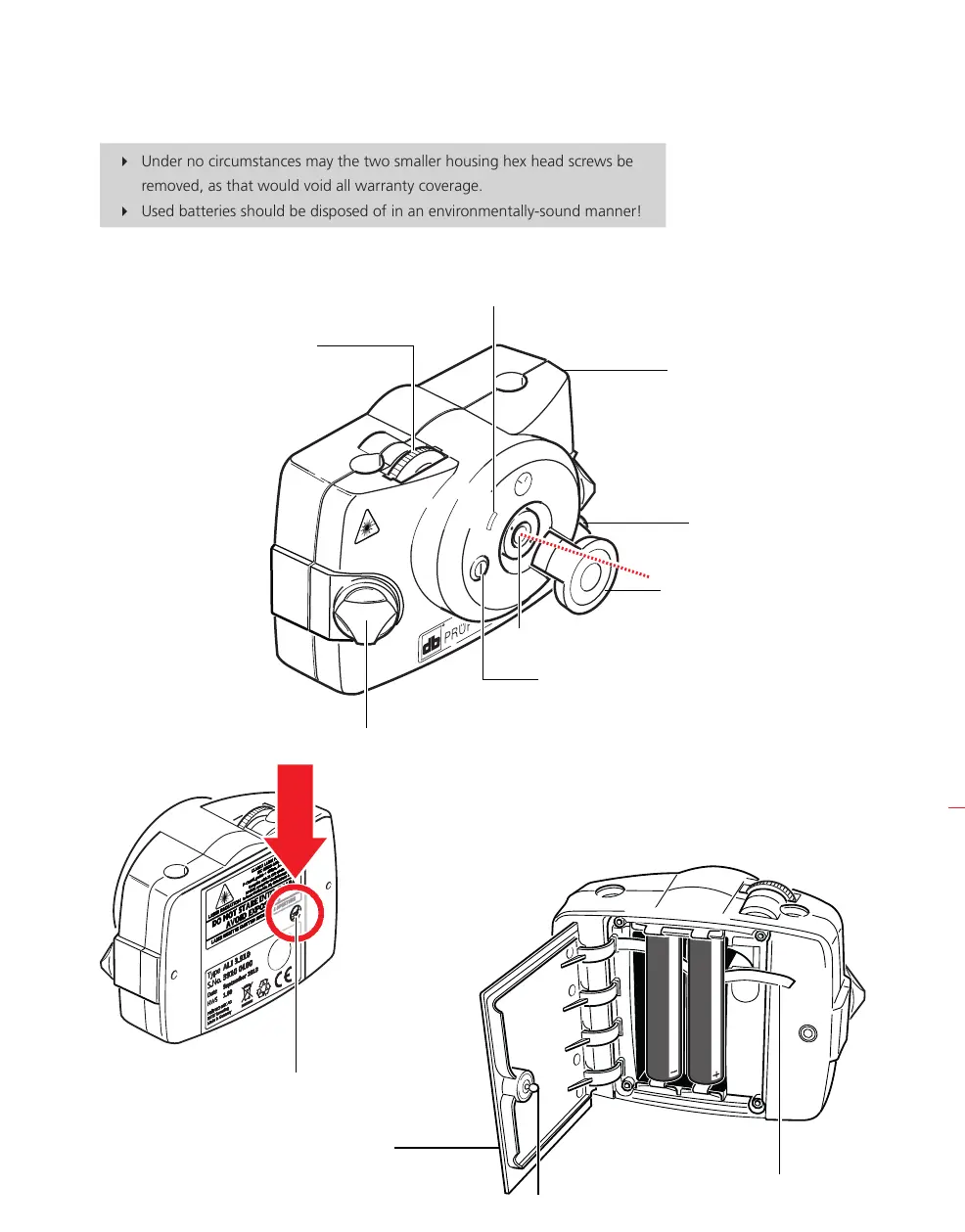

RS5 laser ALI 3.910
Batteries are replaced
by undoing the 1/4 turn
screw and then opening
the battery compartment
cover. Pull the red battery
compartment strap to
remove the batteries.
1/4 turn screw
Strap
Battery compartment cover
1/4 turn screw
Locking knob
“Beam active” indicator LED
Vertical beam position adjustment
thumbwheel
RS5 laser dust cap in “open
position”
On/Off push button switch
Rubber housing
Horizontal beam position
thumbwheel
Laser emission
aperture
 Under no circumstances may the two smaller housing hex head screws be
removed, as that would void all warranty coverage.
 Used batteries should be disposed of in an environmentally-sound manner!
a
CAUTION
m
