3.3.3 RS5 BT sensor ALI 3.901
The sensor has an integrated Bluetooth, and contains two position detectors, which
measure the exact position of the laser beam as the shafts are rotated. The sensor also
contains an electronic inclinometer for shaft rotation measurements.
The sensor has two indicator LEDs on its front side. When facing the sensor, the left
LED shows both the laser beam adjustment and charging statuses. The LED lights
red, orange or green depending on current function. The LED on the right shows the
Bluetooth communication status and lights blue when scanning and when commu-
nication is established.
The sensor is powered using its internal 3.7 V 5 Wh Lithium-ion rechargeable battery.

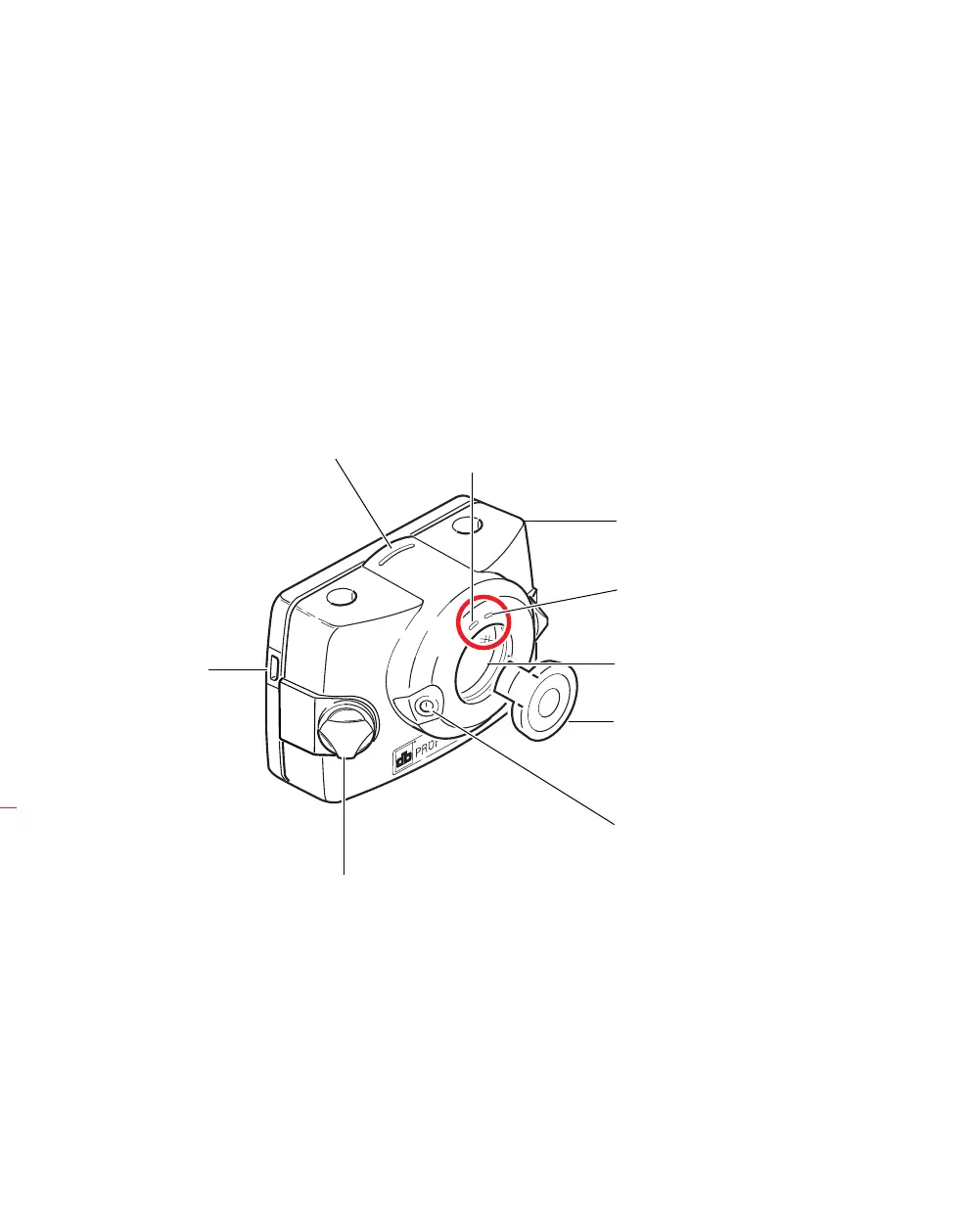

Rubber housing
On/Off push button switch
Scratch-resistant lens
Locking knob
Sensor dust cap in “open
position”
Distance marking
Laser beam adjustment and
charging LED
Bluetooth communication LED
Micro USB port
