3.3.7 Opening the RS5 BT sensor/RS5 laser aperture
Opening the RS5 BT sensor or the RS5 laser aperture functions in a similar manner. In
the following example, images of the RS5 BT sensor are used.

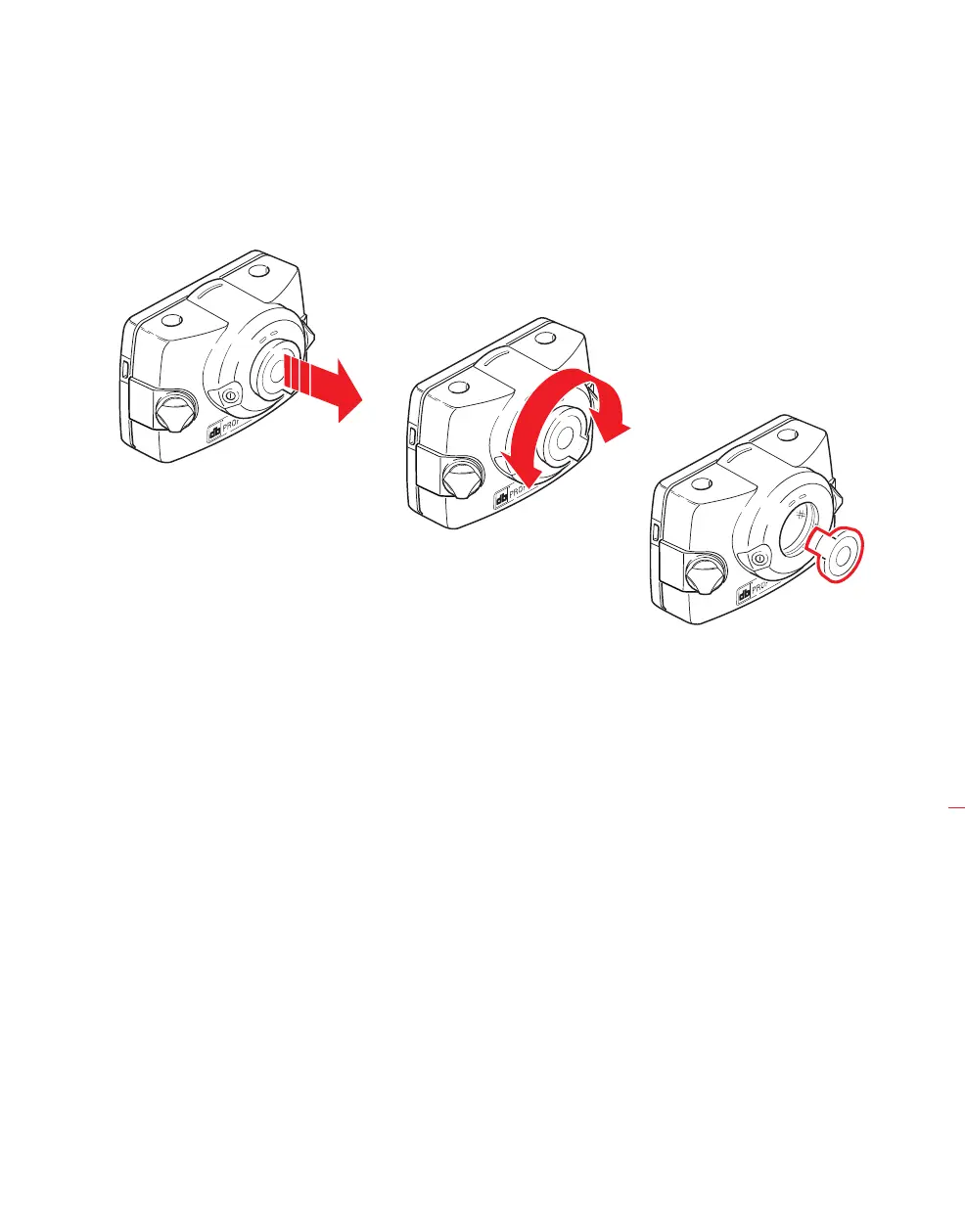

Step 1: Lift the dust cap
slightly in the direction
shown by the bold red
arrow.
Step 2: Rotate the dust cap
in either direction as shown
by the bold red arrow.
Step 3: Lock the dust cap
in its “open position”
highlighted in red below.
