PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

OPTALIGN smart RS5 BT handbook
54

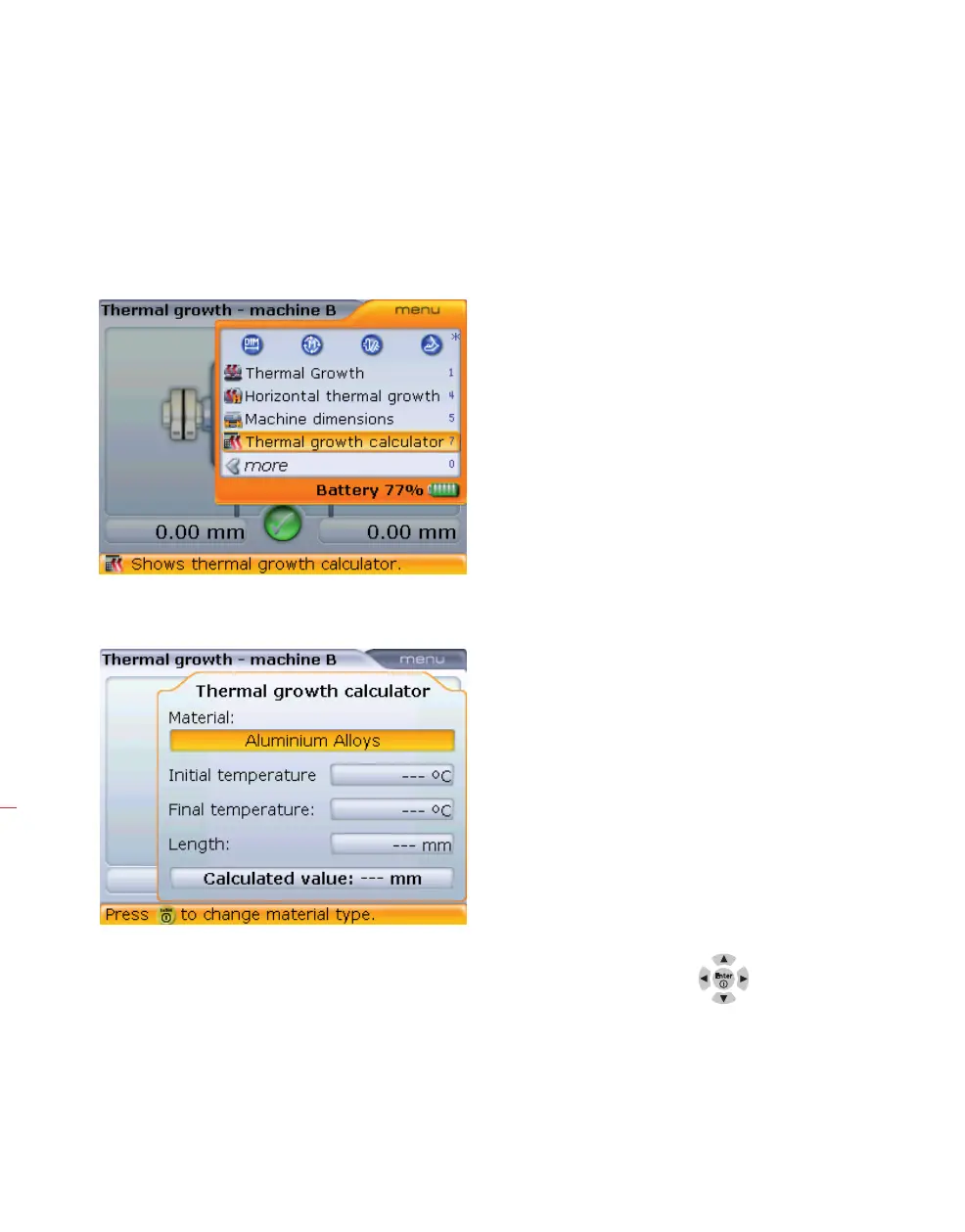

Thermal growth is calculated as follows:
1. Access the “Thermal growth” screen for the machine whose thermal growth
requires calculating as described previously.
2. Press
q while on the screen. The context menu appears. Use f/g to
highlight the context menu item ‘Thermal growth calculator’.
3. Confirm selection by pressing
e. The thermal growth calculator pane appears.
4. Use the navigation keys to highlight the ‘Material’ information box then press
e. A drop down menu appears.
5. Use
f/g to highlight required type of material.
