If the coupling type selected is spacer shaft or short flex, it is possible to set the
coupling results format directly from the machine dimensions screen.
With the coupling highlighted, press
e to reveal coupling parameters that may be
edited.
Use
f/g and highlight the item ‘Spacer format’.
If the coupling type was ‘Short flex’, then the item ‘Short flex format’ would
appear in the list.
Press
e to confirm selection. The available spacer shaft coupling results formats are
displayed.

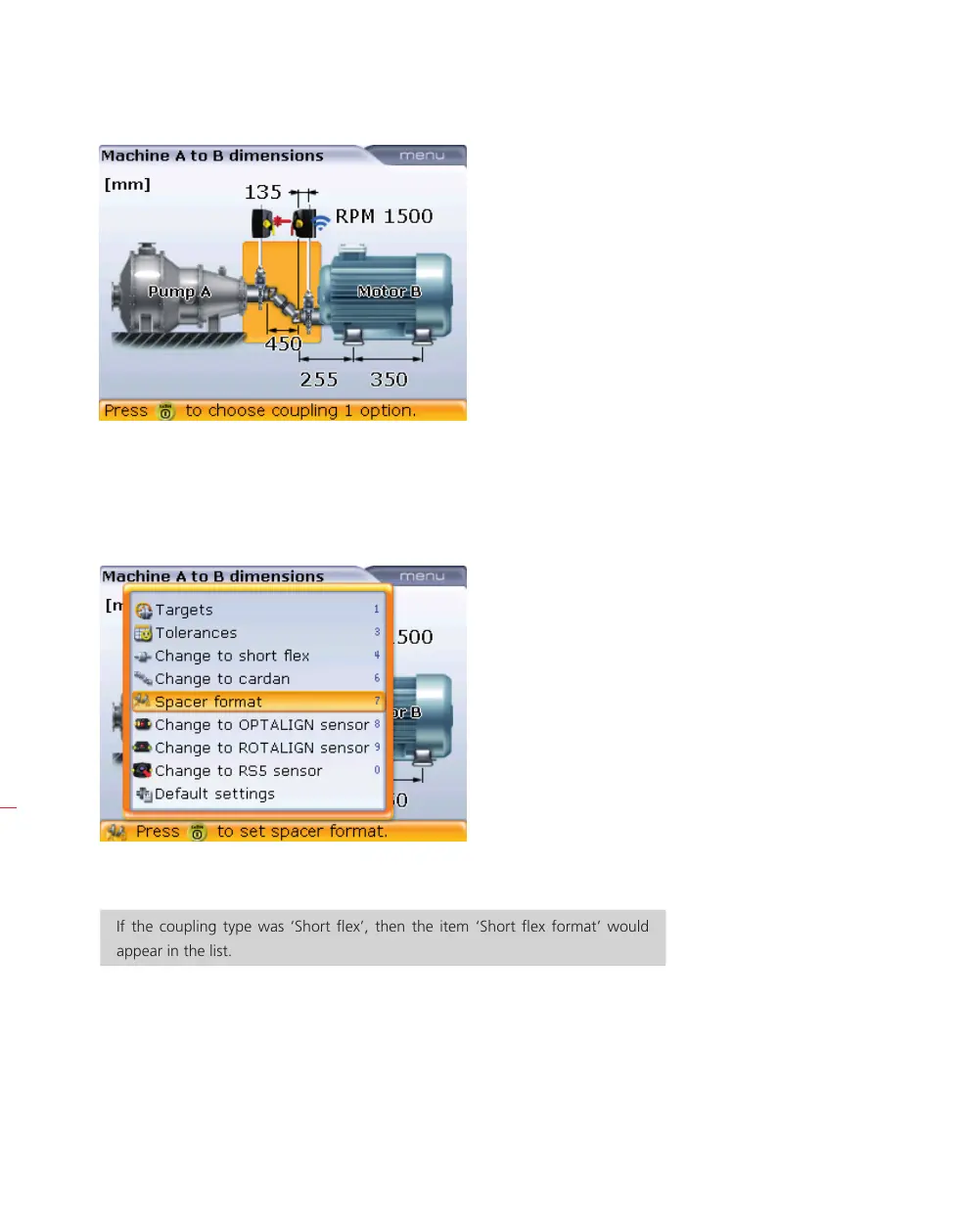

Type of coupling selected in
this example is cardan.
In this example, the selected
coupling type is ‘Spacer
shaft’ and therefore the
availability of spacer shaft
formats that may be used to
display coupling results.
