PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

Horizontal shaft alignment
59

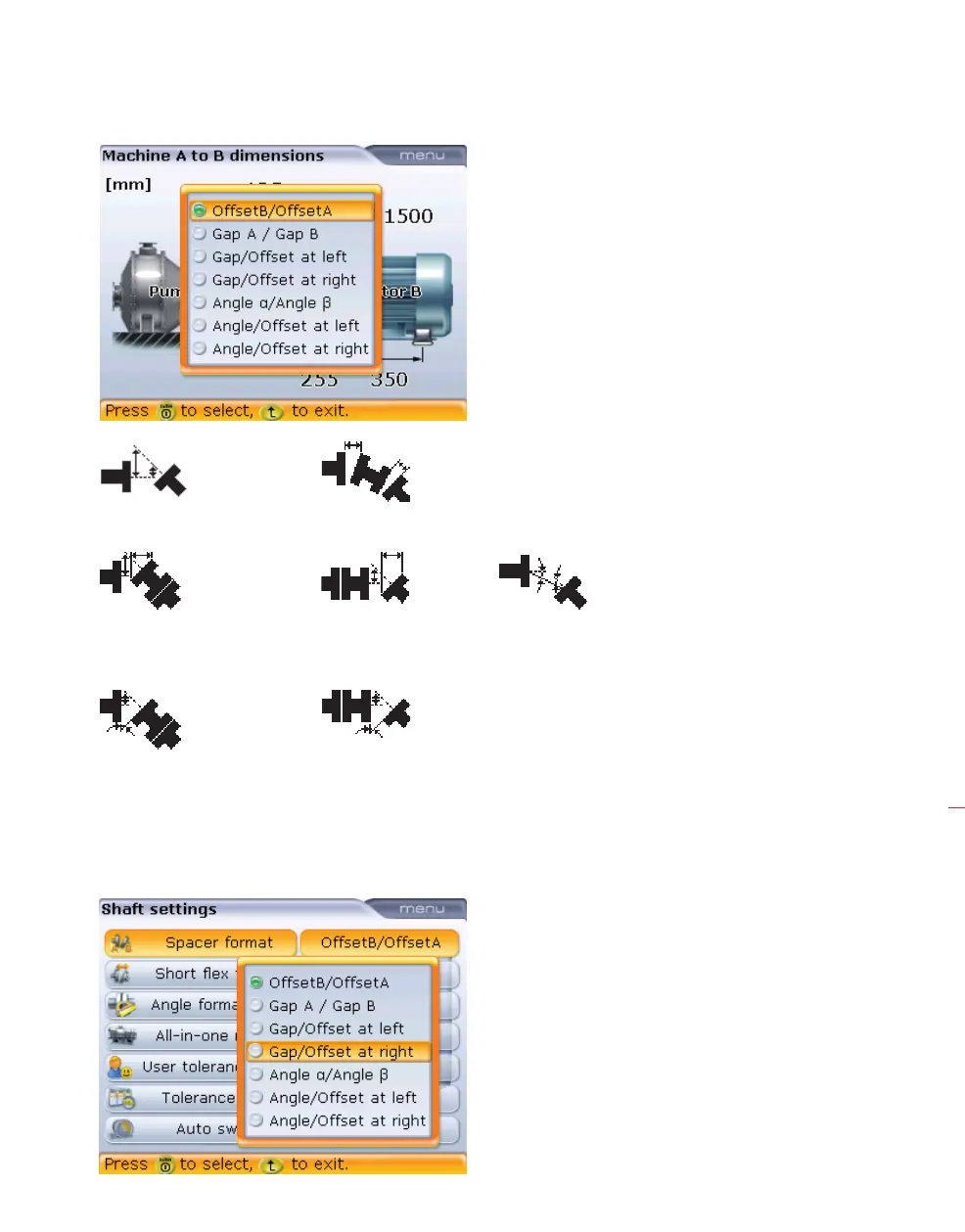

Coupling results formats for spacer shafts, short flex coupling and cardan shafts may
also be set under the configuration item ‘Shaft settings’.
Offset B / Offset A Gap B / Gap A
Total Gap / Offset at
Left Coupling
Total Gap / Offset at
Right Coupling
Alpha / Beta
Total Angle / Offset at
Left Coupling
Total Angle / Offset at
Right Coupling
