OPTALIGN smart RS5 BT handbook
78

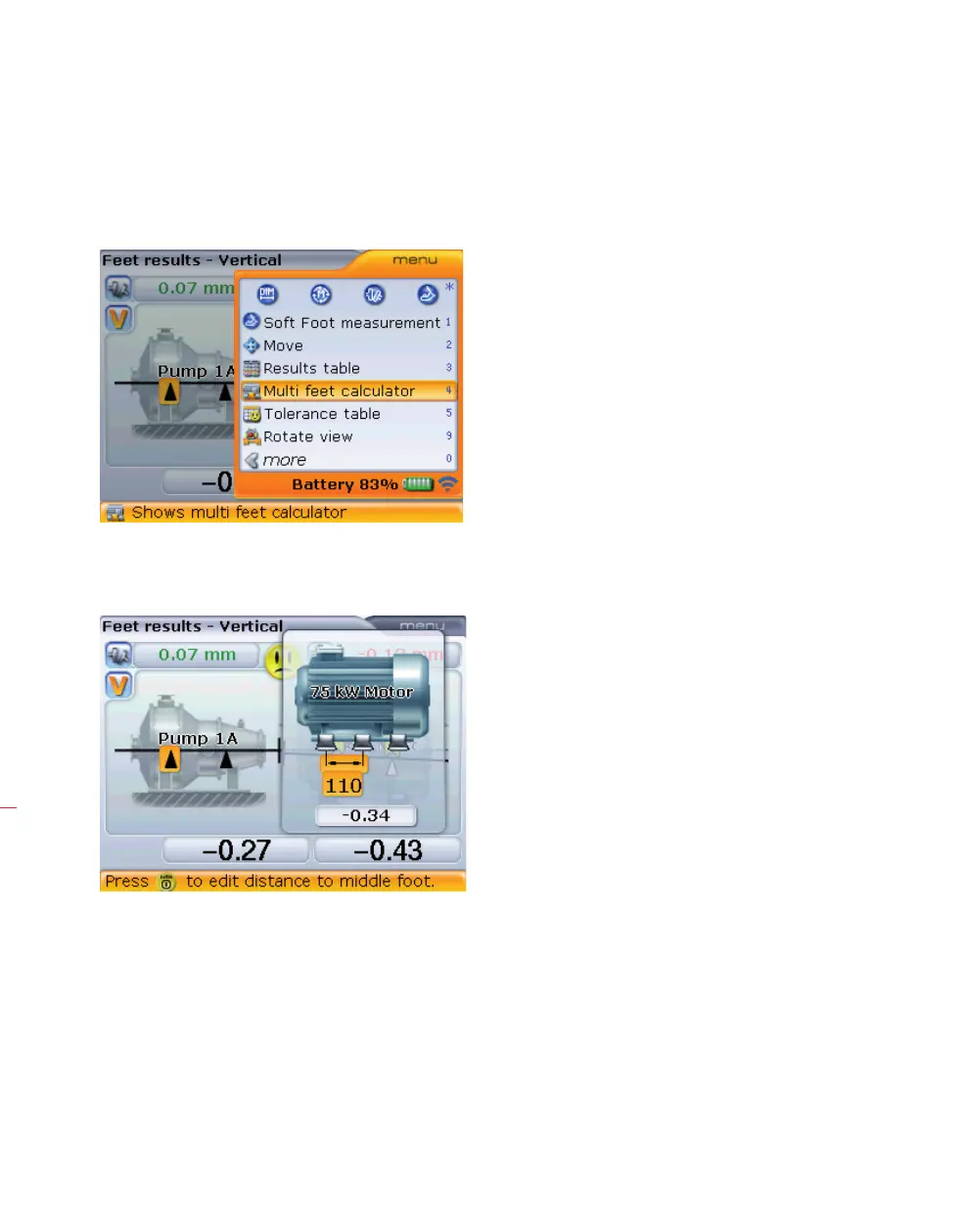

5.11.3 Multiple feet results
If measuring a six-foot machine, it is possible to determine the correction value of the
middle pair of feet. Press
q when in feet results.
Use
f/g to highlight the context menu item ‘Multiple feet calculator’.
Confirm selection by pressing
e. The multiple feet calculator pane opens.
With the multiple feet
calculator pane open, enter
the dimension between the
first and middle pair of feet.
The foot correction value
at the middle feet appears
in the box just below the
entered dimension.
