Horizontal shaft alignment
79

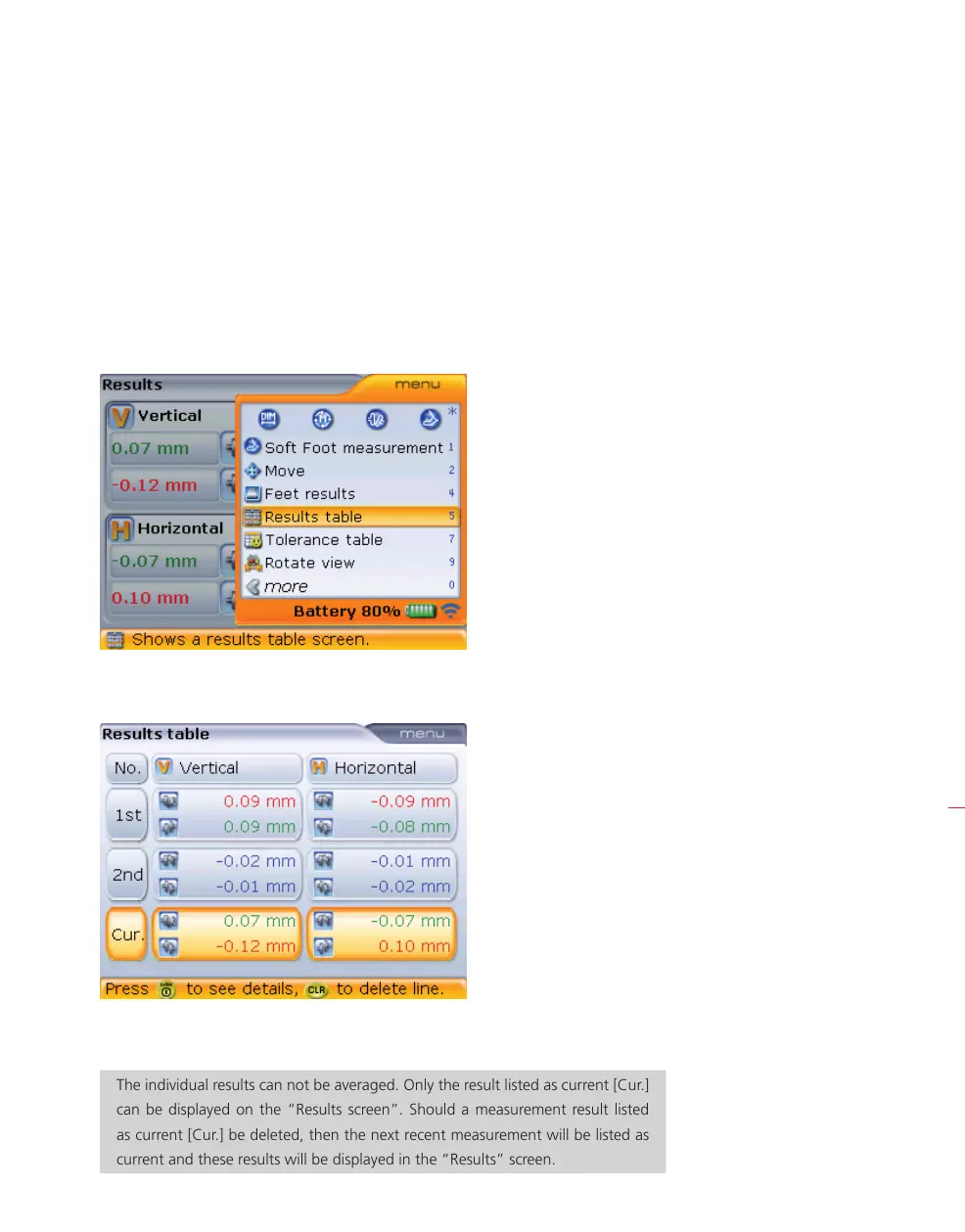

5.11.4 Results table
The results table lists a maximum of three coupling result entries for currently selected
set of machines. These three entries may include the current coupling results and the
two most recent coupling results. The entries are in chronological order with the most
recent result appearing at the bottom of the list numbered as current ( ‘Cur.’). The
oldest result appears at the top of the list numbered 1st.
The results table is accessed through the “Results” screen. Press
q while in results.
Use
f/g to highlight ‘Results table’ from the context menu that appears.
Press
e to confirm selection. The results table is displayed.
Use
f/g to scroll though the coupling results entries.
The individual results can not be averaged. Only the result listed as current [Cur.]
can be displayed on the “Results screen”. Should a measurement result listed
as current [Cur.] be deleted, then the next recent measurement will be listed as
current and these results will be displayed in the “Results” screen.
Alternatively, the results
table can be accessed
directly by pressing
5
while the context menu is
displayed.
You may use f/g
to highlight any one of the
listed coupling results. With
the results set highlighted,
pressing
e displays the
measurement details. The
highlighted results set may
be deleted by pressing
c.
HNote
