Horizontal shaft alignment
89
5.13.5 Lateral positioning using horizontal Live Move
After making the vertical corrections, you may want to use the Live Move function to
carry out horizontal corrections.

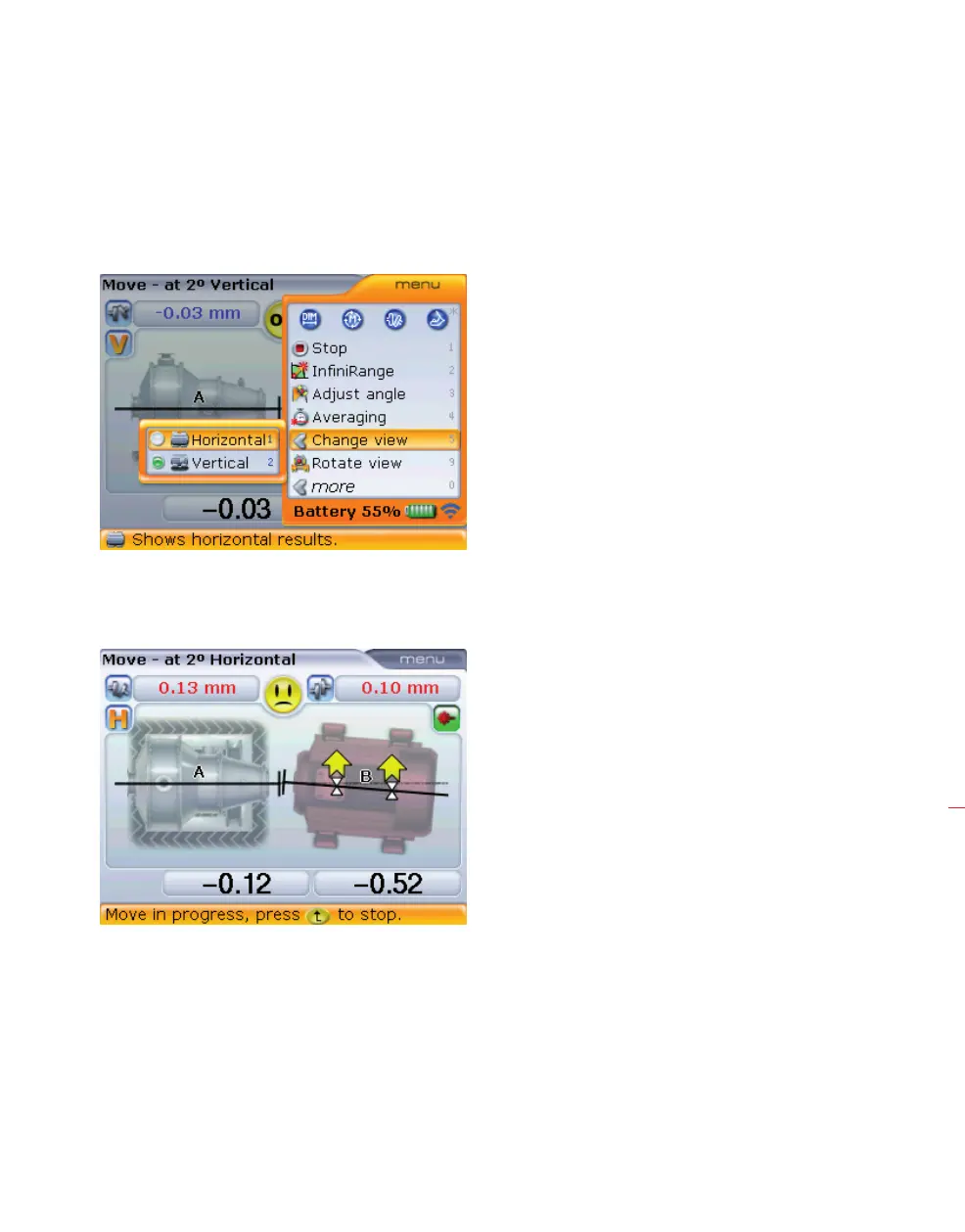

1. Press
q then use f/g to select ‘Change view’ followed by ‘Horizontal’.
2. Confirm selection by pressing
e and proceed to carry out Live Move in the
horizontal direction.
3. Note the following sign convention – Positive feet values indicate that the
machine feet should be moved towards viewer, while negative feet values
suggest the moving the machine feet away from viewer.
4. Move the machine feet in the direction of the yellow arrows, keeping an eye on
the smiley on the screen. The arrows change with the movements automatically.
Watch the screen carefully to ensure that machine end and direction moved are
correct. The smiley on the display screen and the computer LEDs also give an
indication of the alignment condition as the machine is moved.
