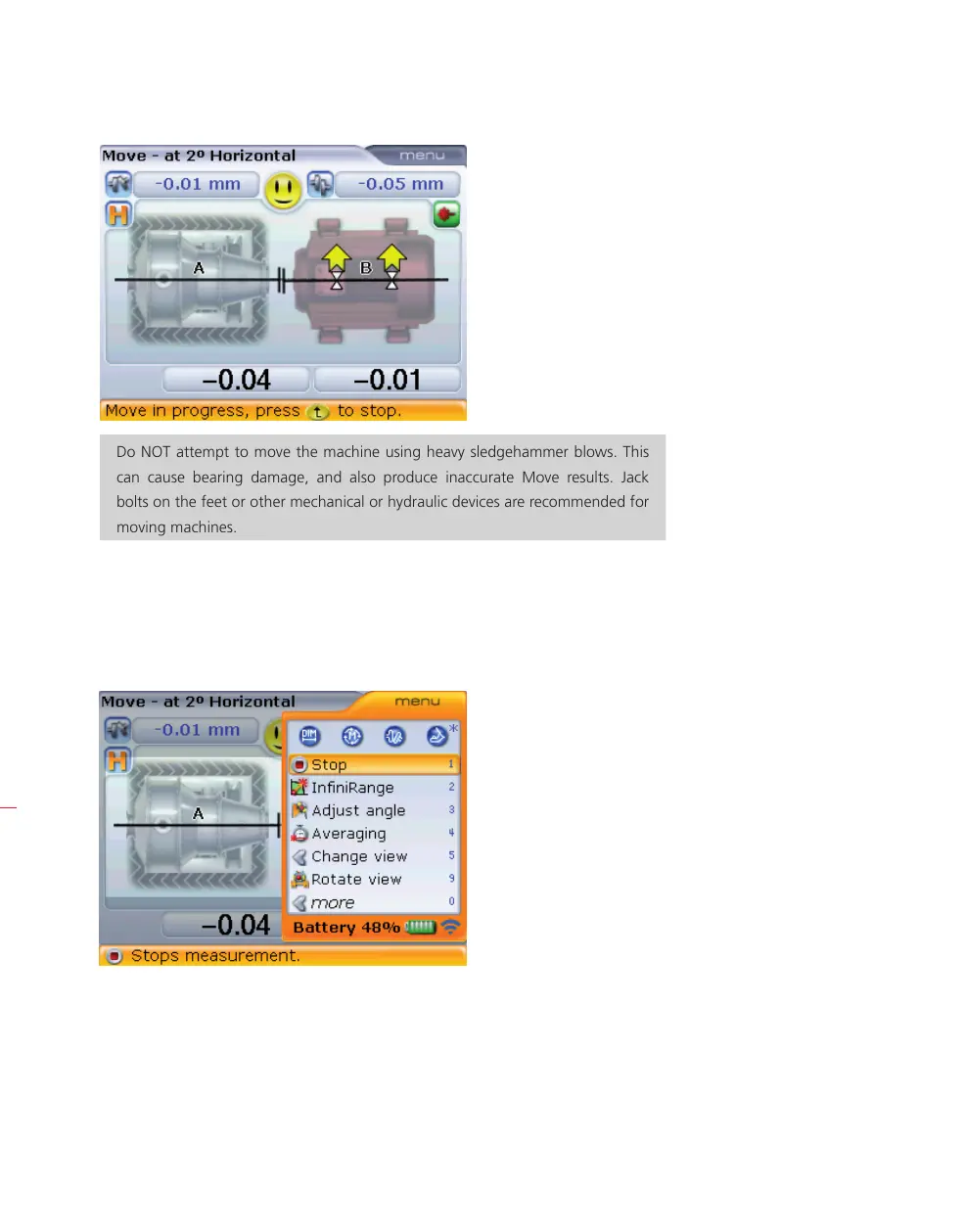

Do NOT attempt to move the machine using heavy sledgehammer blows. This
can cause bearing damage, and also produce inaccurate Move results. Jack
bolts on the feet or other mechanical or hydraulic devices are recommended for
moving machines.
5. If the smiley returns a happy face or an OK symbol, the current horizontal
alignment condition is within tolerance
6. Tighten anchor bolts and to proceed to verify alignment condition after Move.
7. Press
q then use f/g to highlight ‘Stop’.
8. Confirm selection by pressing
e.
If desired you may toggle
between the Horizontal and
Vertical Live Move directions
using
f/g.
a
CAUTION
