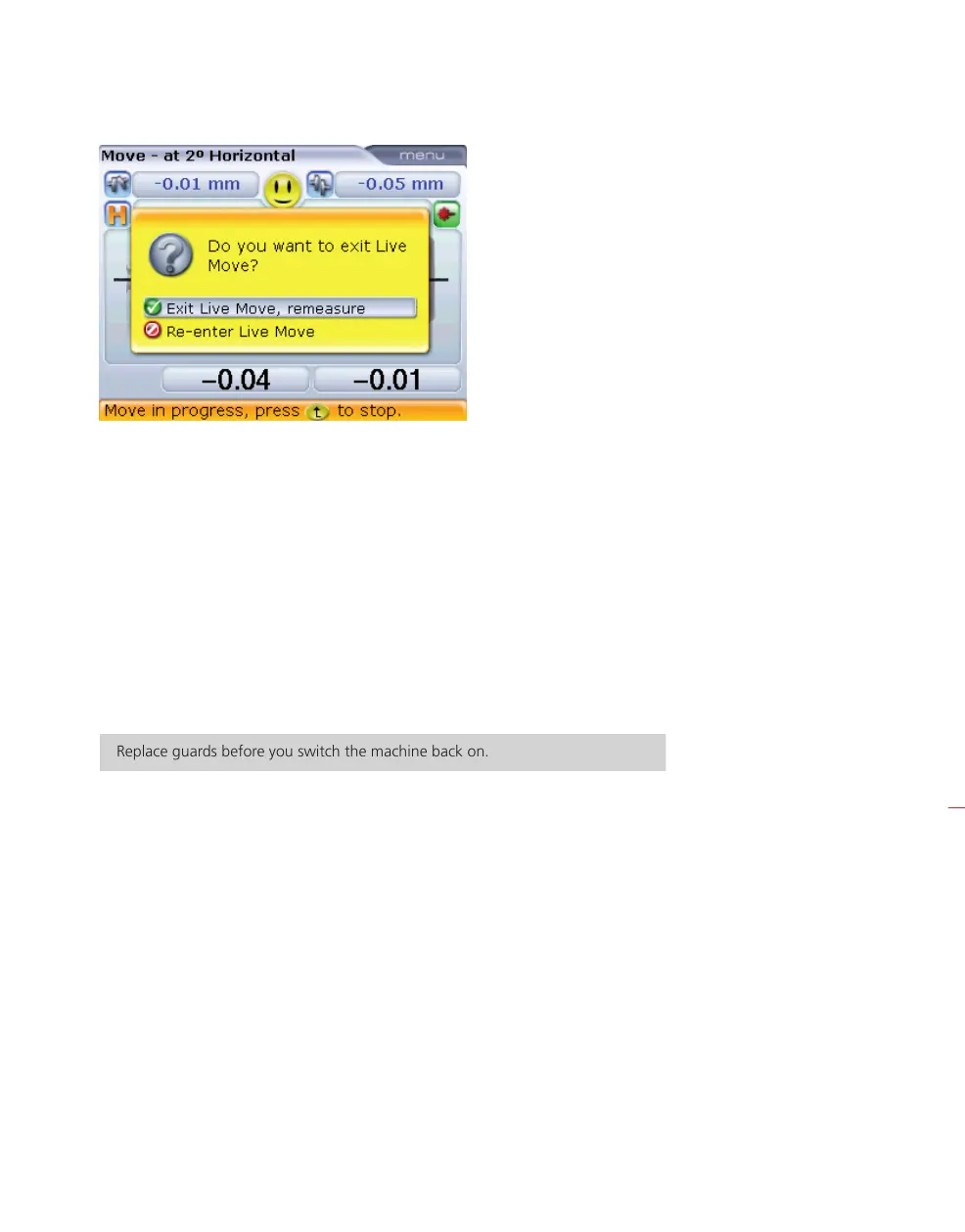

9. With the option to re-measure highlighted, press e to confirm selection. The
measurement mode is initialized. Recheck alignment by taking another set of
measurements and viewing results. If they are in tolerance, then the machines
are aligned.
5.13.6 Saving data and printing
(See section 5.14.)
5.13.7 Finish alignment
Switch off the computer, the sensor and the laser, then remove the components from
the shafts and store them in the case.
Replace guards before you switch the machine back on.
