Prusa i3 MK2S KIT - C Heck P Robe H Eight ( Kit O Nly)

Pict.   9   -   Perfect   Prusa   logo   first   layer
6.3.10.2 Check probe height (kit only)
If the first layer seems inconsistent between multiple prints, the probe might be
too high. Lower it slightly. Loosen the two screws on the probe holder to make
adjustments. By rotating the probe clockwise, it will lower at 1mm per turn. It
is very handy for precise adjustments, but it can also be pushed in and out when set screws
are loosened completely. Then try again Calibrate XYZ. Keep in mind, the probe must be
always higher than the nozzle tip, otherwise it will catch on prints.

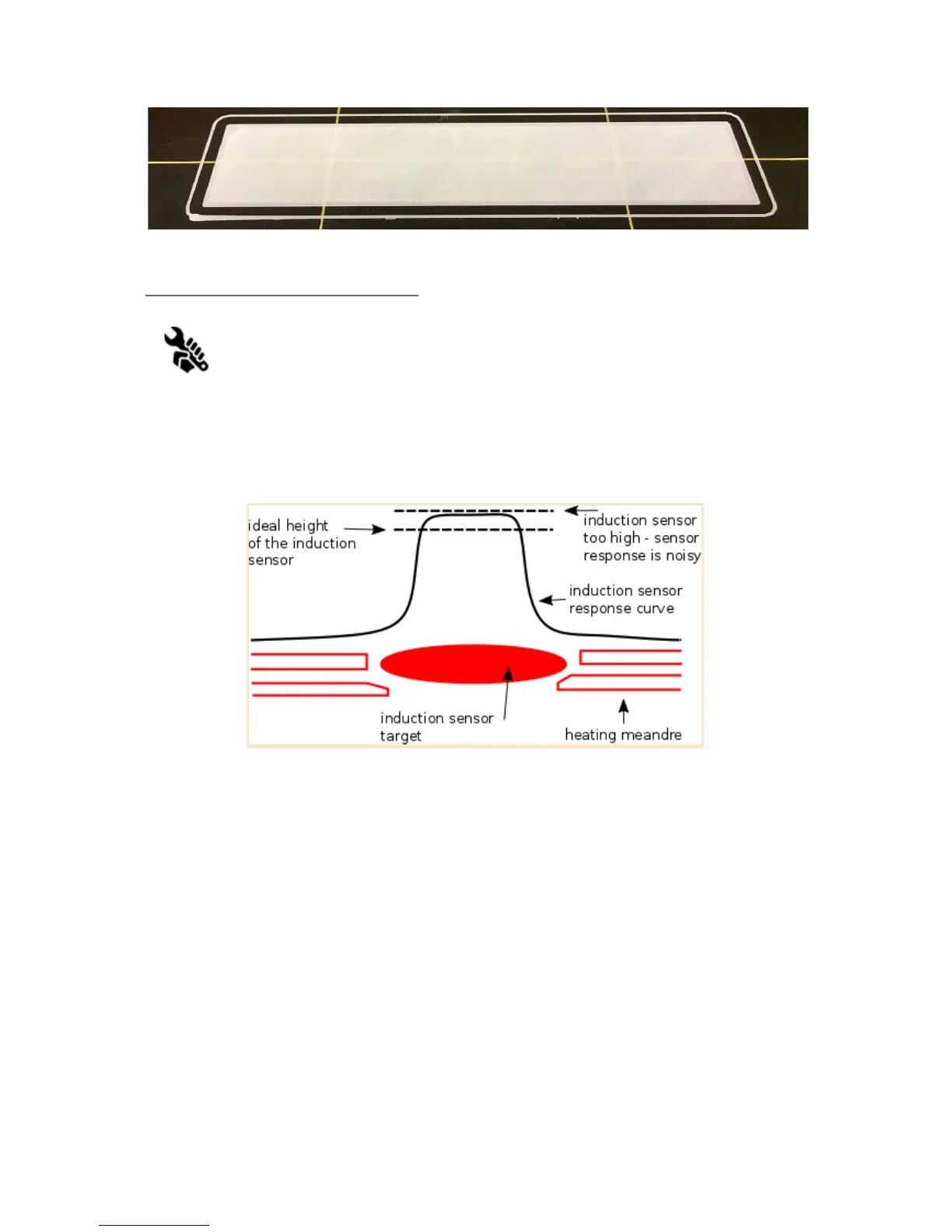

Pict.   10   -   Probe   response   diagram.
Now you are done!

 
24
