Pulsar FLOW PULSE - Page 12

Page 12

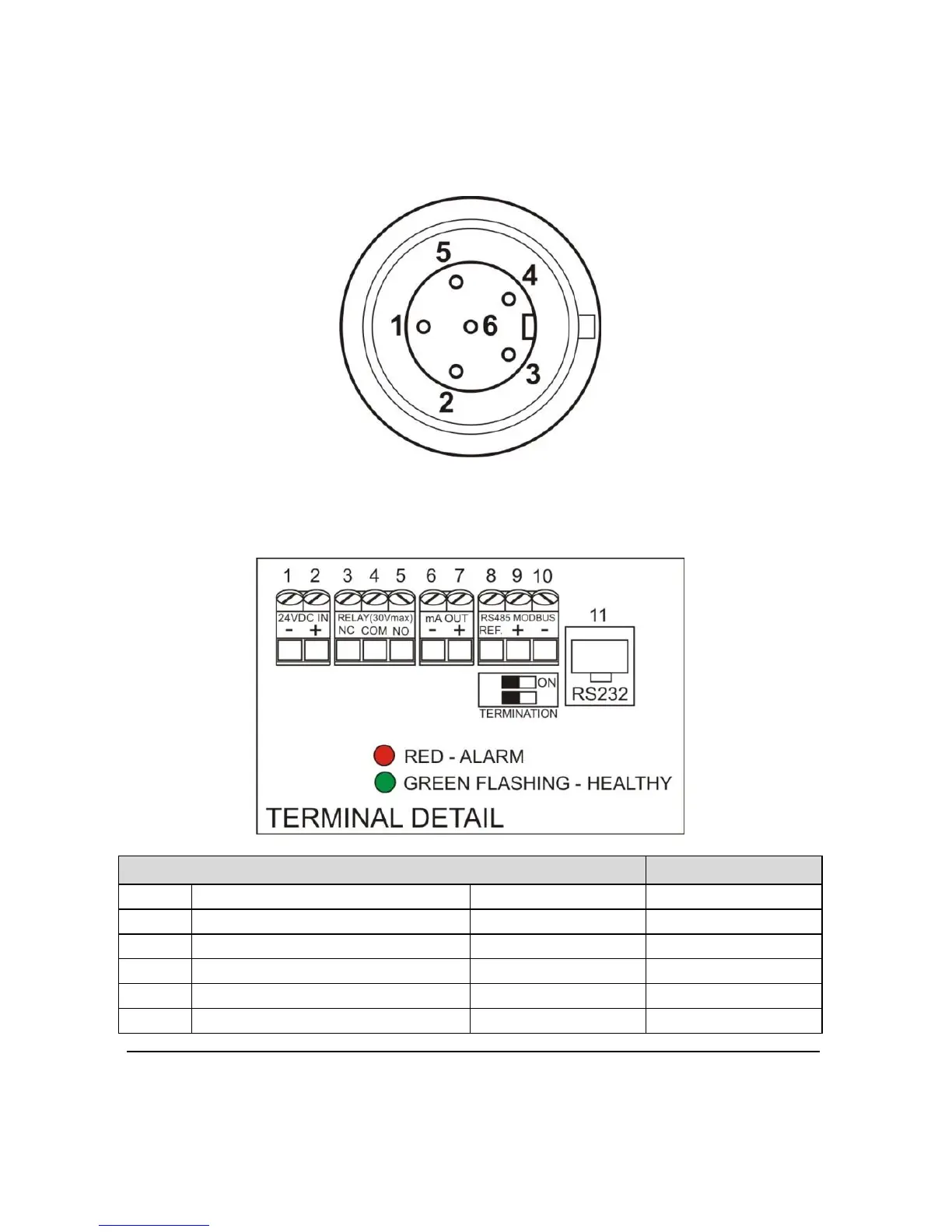

For reference when connecting the Flow Pulse Handheld to the Flow
Pulse the connections on both the Flow Pulse and the Flow Pulse
Handheld are shown below. The table describes the connections between
the two.
The Flow Pulse connector to the Flow Pulse Handheld above and
the Terminal diagram to the Flow Pulse below.
Flow Pulse Connector
Flow Pulse
Pin
Description
Cable Colour
Terminal No.
1
Power (nom. 12VDC)
Red
2
2
0V
Blue
1
3
RS485+
Yellow
9
4
RS485-
Green
10
5
Cable Screen
Screen
NC
