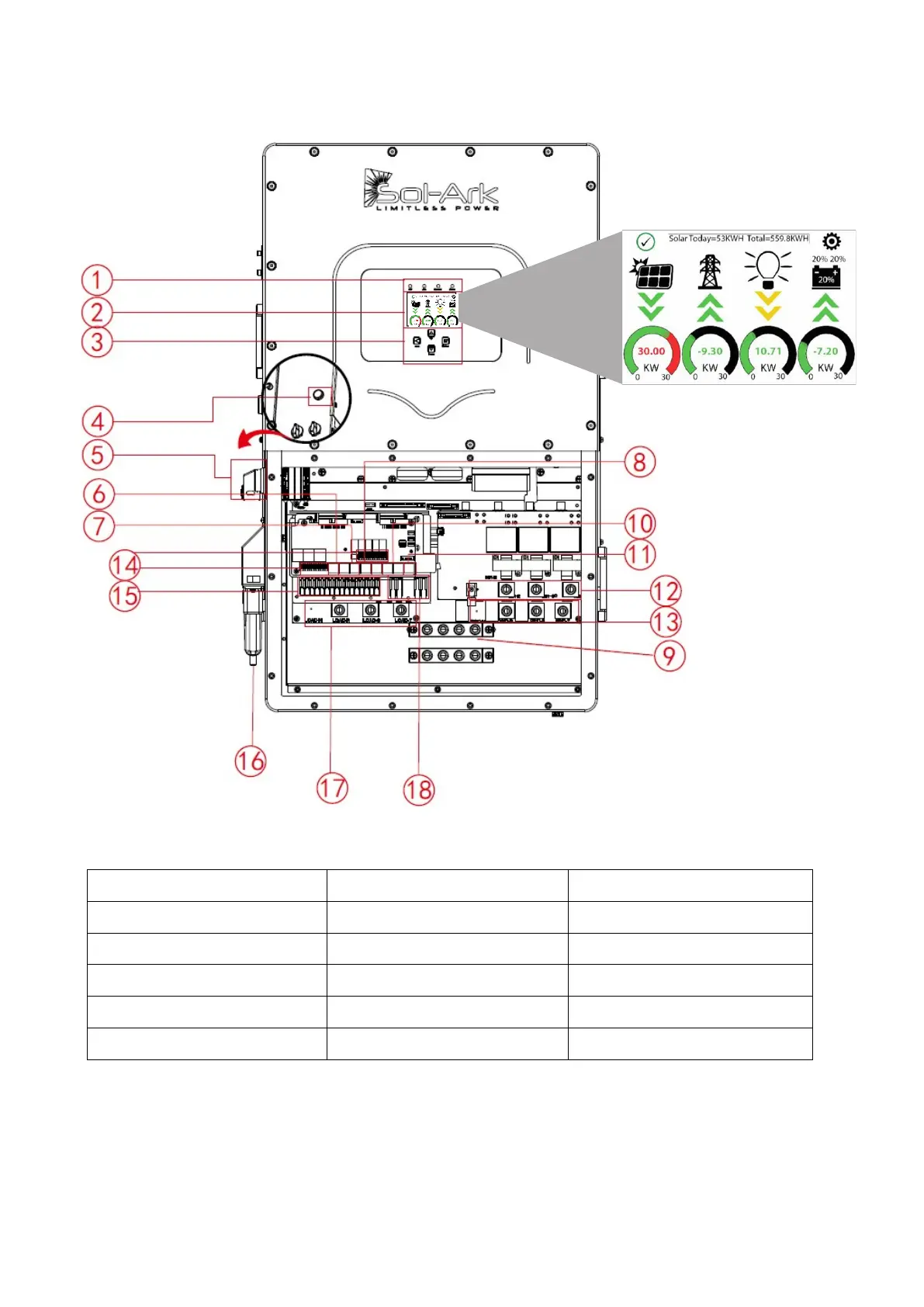

2.3.1.1 Inverter Components (30K-3P-208V/60K-3P-480V)
1. Inverter Indicators
2. LCD Display (Touch)
3. Function Buttons
4. ON/OFF Button
5. 2 x PV Disconnect
6. Meter Port (optional)
7. Parallel Port
8. CAN Port
9. Ground / Neutral Bars
10.
BMS Port
11.
RS485 Port
12.
Generator Input
13.
Grid Connection
14.
Function Port
15.
PV Input MPPTs
16.
Wi-Fi Interface
17.
Load Connection
18.
Battery Connections
