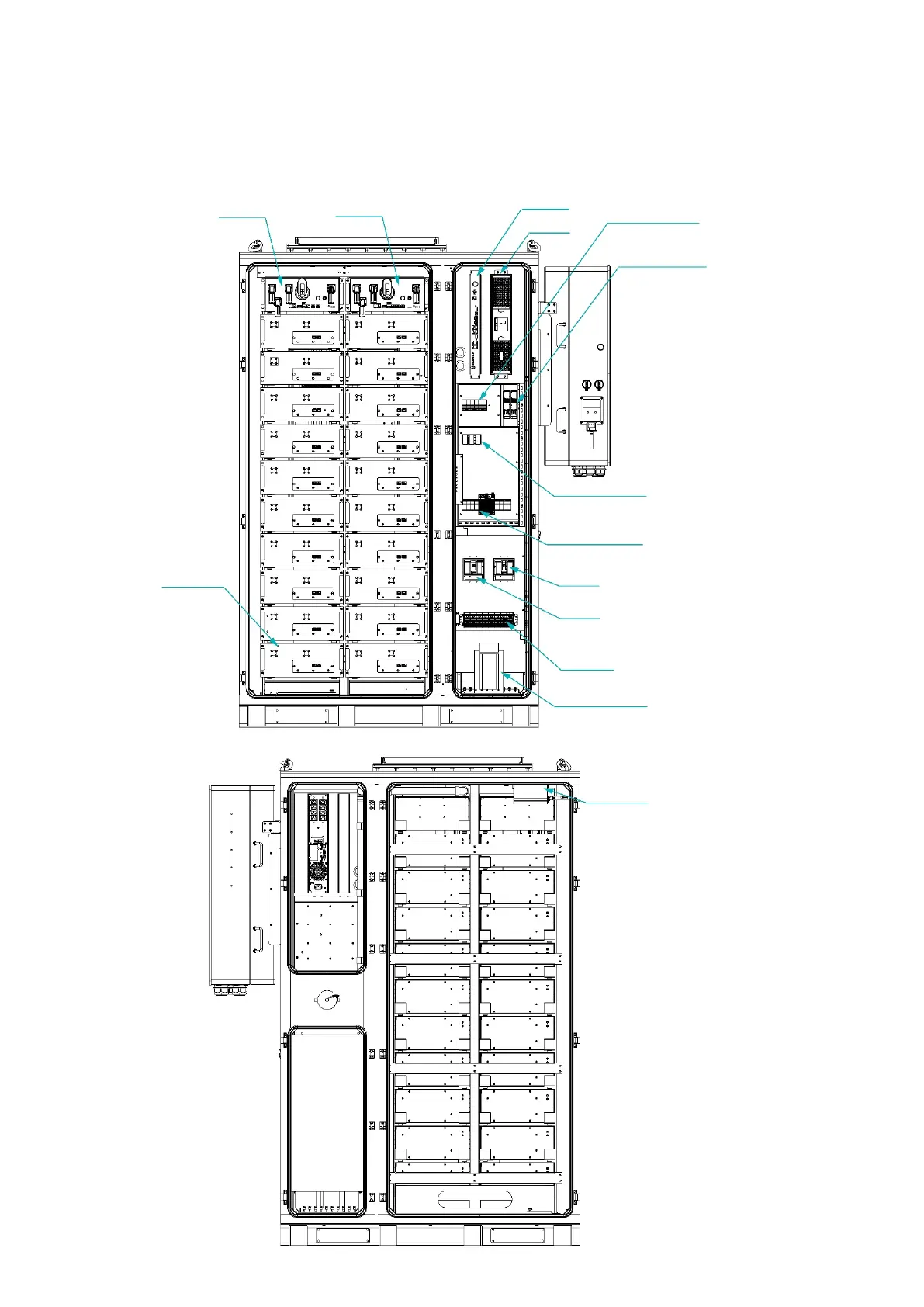

3.1.3 Internal Layout
Following is the layout of a 30Kw system with up to two BMS units and two battery strings. Other
configurations can also refer to this drawing, only differs on the Qty. of BMS units and battery
modules.
BMS 1
BMS 2
MBMS
UPS
 AC Breaker
 DRL 24V,12V power switch
 Intermediate Relay
 AC SPD Breaker
 QF2(AC Breaker2)

QF1(AC Breaker 1)
⑪ 150A-8 Pin TC terminal
⑫ 3 kVA Transformer
⑬
Battery Module
⑭ Aerosol Fire Suppression Device
