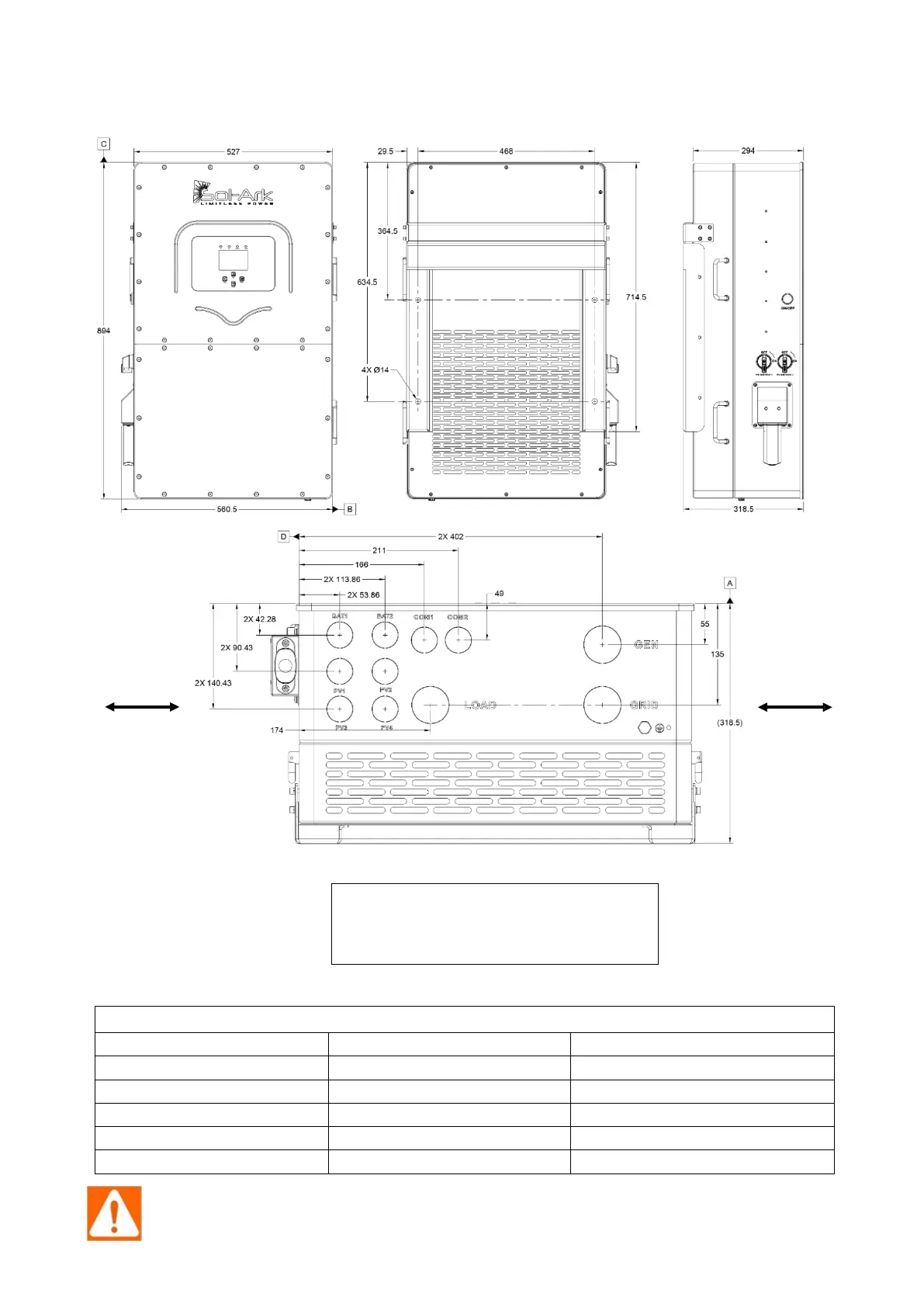

2.3.3.2 Dimensions of the Inverters
Both the two model’s dimensions are the same as follows:
2” Minimum Horizontal Clearance | 6” Minimum Vertical Clearance
2.3.3.3 Torque Values Application Note
Model Sol-Ark 30K-3P-208V/ Sol-Ark 60K-3P-480V
Load Terminal Block 62 IN Lbs 7 NM
Grid Terminal Block 62 IN Lbs 7 NM
Gen Terminal Block 62 IN Lbs 7 NM
Neutral / Ground Bus bars 62 IN Lbs 7 NM
Cover Screws
15.5 IN Lbs
1.75 NM
Battery Connection
Hand-Pressed Actuation Lever
Hand-Pressed Actuation Lever
Warning: DO NOT use Impact Drivers to Tighten Any Fasteners on the Sol-Ark
Avertissement: NE PAS utiliser de tournevis à percussion pour serrer les fixations du Sol-Ark.
2” (5.08cm)
2” (5.08cm)
Temperature Derating
DC: 90C-100C Shutdown @ 100C
AC: 75C-82C Shutdown @ 82C
