34
2.5.1 Fire Suppression System

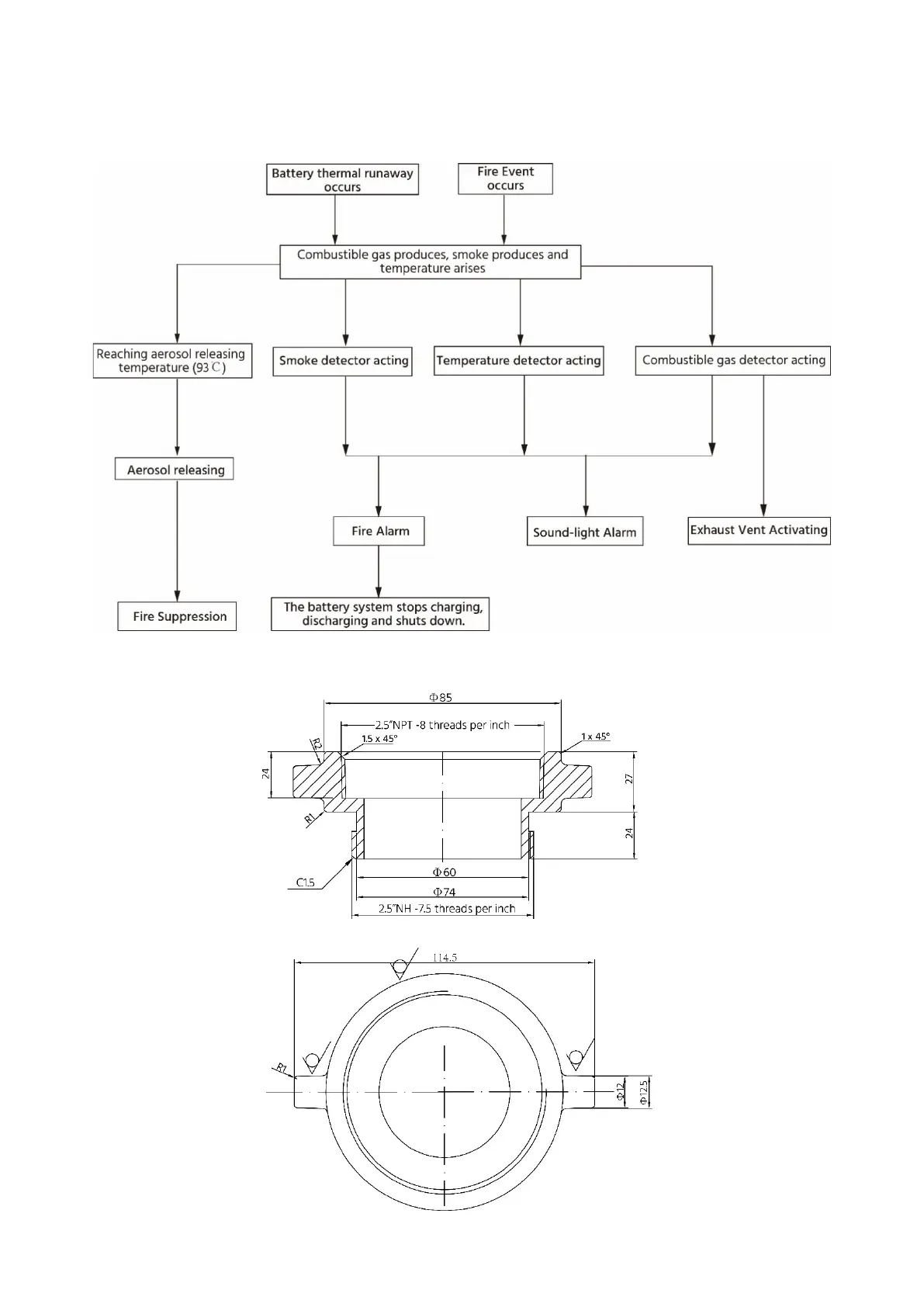

The control logic of the fire suppression system is shown in the following diagram.
Drawing of the external joint of water firefighting
(unit: mm)
