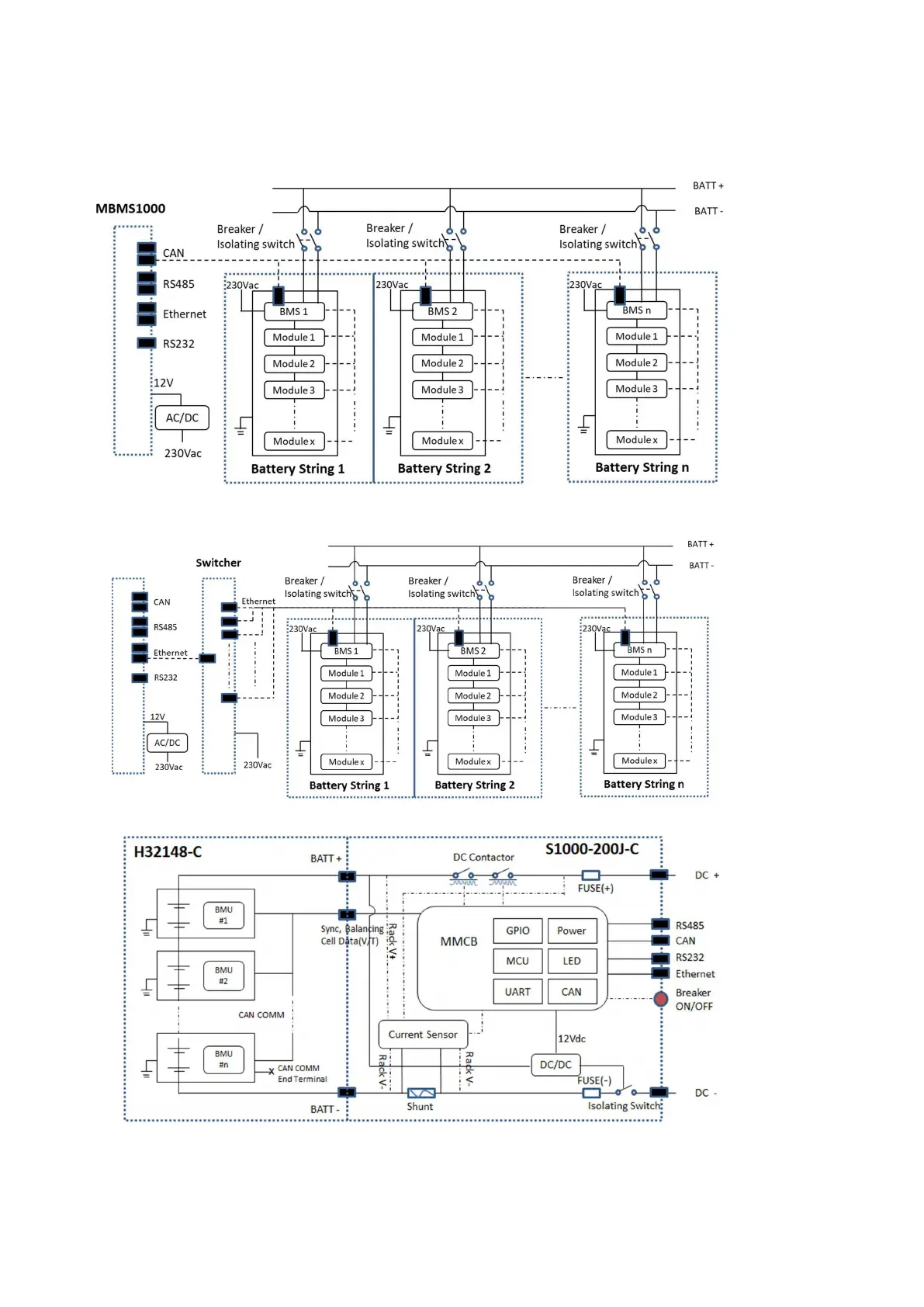

2.4.6 System Diagram

2.4.6.1 Multiple battery string in parallel connection by CAN communication between MBMS and

BMS diagram (battery string qty. ≤6)

2.4.6.2 Multi battery string in parallel connection by Ethernet communication between MBMS and BMS

diagram (battery string qty. ≤32 set)

2.4.6.3 Diagram between BMS and battery modules (internal power supply):
