Quantum QXS 12G Series - Chassis with Bezels Removed; QXS-412 12 G and QXS-424 12 G Chassis; Chassis with Bezels Installed

2 QXS 12G Site Planning Guide
Chassis with Bezels Removed

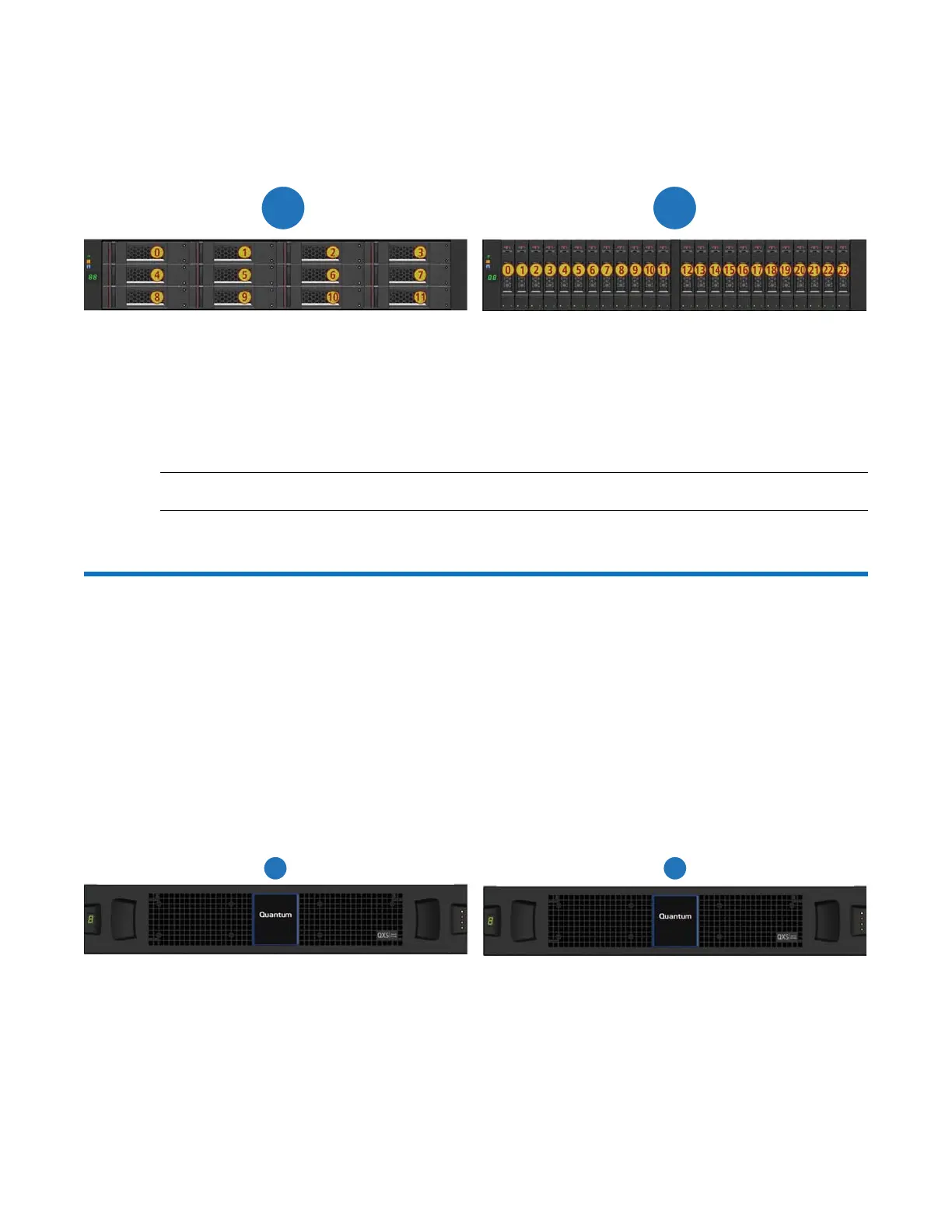

Figure 2 provides images of the front of the 12 and 24-drive chassis with the bezels removed.
Figure 2 Chassis Front View (Bezel Removed)
NOTE: The QXS-312 12G and QXS-324 12G systems ship with drives installed.
QXS-412 12G and QXS-424 12G Chassis
This section provides general information for the following chassis:
• QXS-412 12G: 12-Drive System (4-Port: FC or iSCSI)
• QXS-424 12G: 24-Drive System (4-Port: FC or iSCSI)
Chassis with Bezels Installed
The front of the 12 and 24-drive chassis are 2U high (3.5 inches/88.9mm) and use the same bezel
(2U). Refer to Figure 3 for images of the chassis with bezels installed.
Figure 3 System Front View (with Bezel)
1 2
1 QXS-312 12G: 12-Drive Chassis
•2U high
• 12 drives installed (Labeled 0-11)
• 2-host ports per controller
2 QXS-324 12G: 24-Drive Chassis
•2U high
• 24 drives installed (Labeled 0-23)
• 2-host ports controller
1 2
1 QXS-412 12G: 12-Drive Chassis (2U high) 2 QXS-424 12G: 24-Drive Chassis (2U high)
