4 QXS 12G Site Planning Guide
Chassis with Drawers Open
NOTE: The QXS-484 12G systems ship with no drives installed (weight). Drives are shipped within
two boxes containing 42 drives within each box.
Figure 6 provides an image of the 84-drive chassis (drive slots view) with the drawer open. There are
a total of 84 drive slots in the two drawers.
• Drawer 0 has drive slots 0-41 (42 drives can be installed)
• Drawer 1 has drive slots 42-83 (42 drives can be installed)
NOTE: Figure 6 displays the front of the drawer on the left side of the illustration (callout 1). The
back of the drawer is on the right side of the illustration (callout 3).

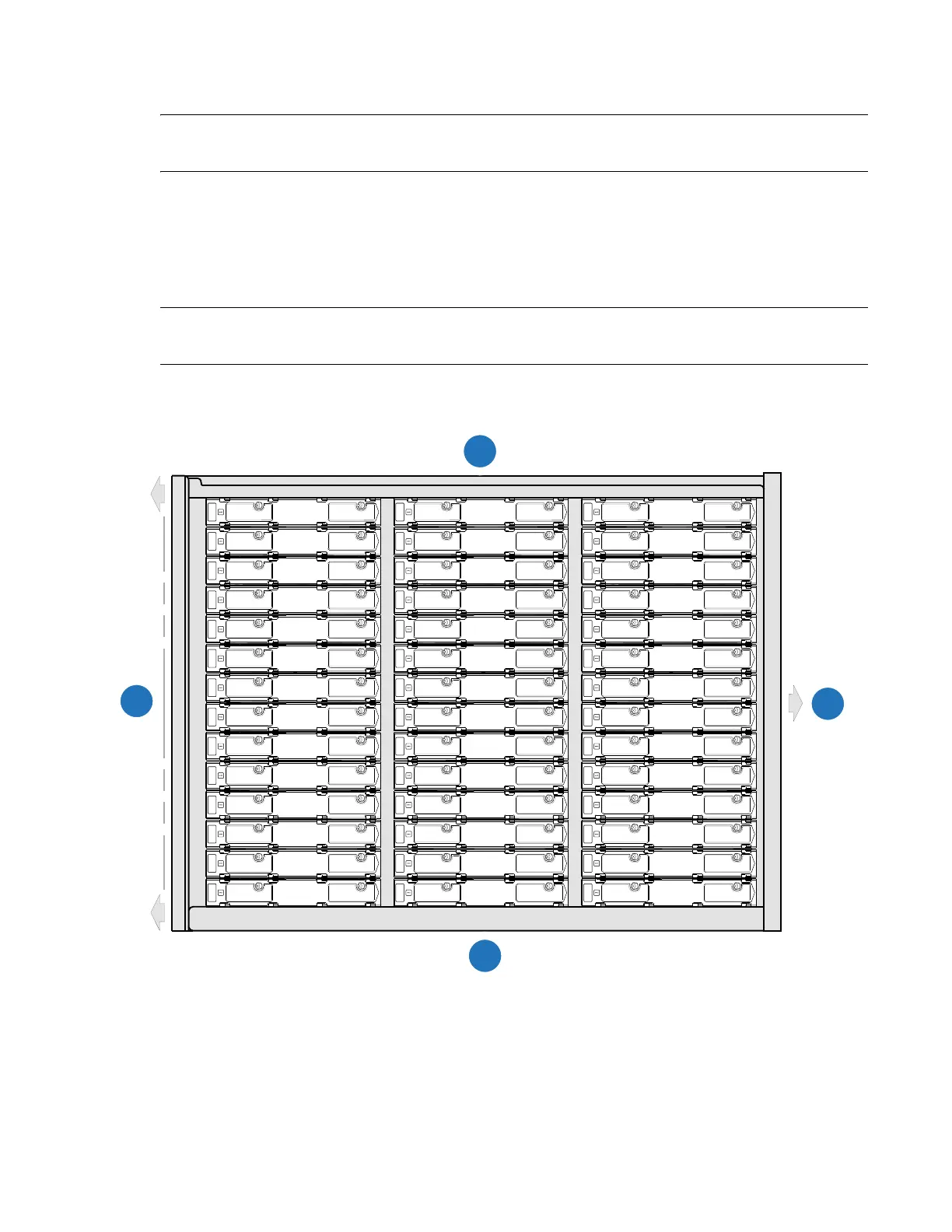

Figure 6 84-Drive Chassis (Drive Slots)
2
1
3
4
0/42
2/44
1/43
3/45
4/46
5/47
6/48
7/49
8/50
9/51
10/52
11/53
12/54
13/55
14/56
15/57
16/58
23/65
18/60
19/61
20/62
21/63
22/64
41/83
17/59
25/67
26/68
27/69
28/70
29/71
30/72
31/73
24/66
37/79
38/80
35/77
39/81
33/75
34/76
36/78
40/82
32/74
1 Drawer 0/1 Front 2 Drawer 0/1 Left Side
3 Drawer 0/1 Rear (slides into chassis) 4 Drawer 0/1 Right Side
