Quantum QXS 12G Series User Manual

QXS-324/424 12G System Specifications 25

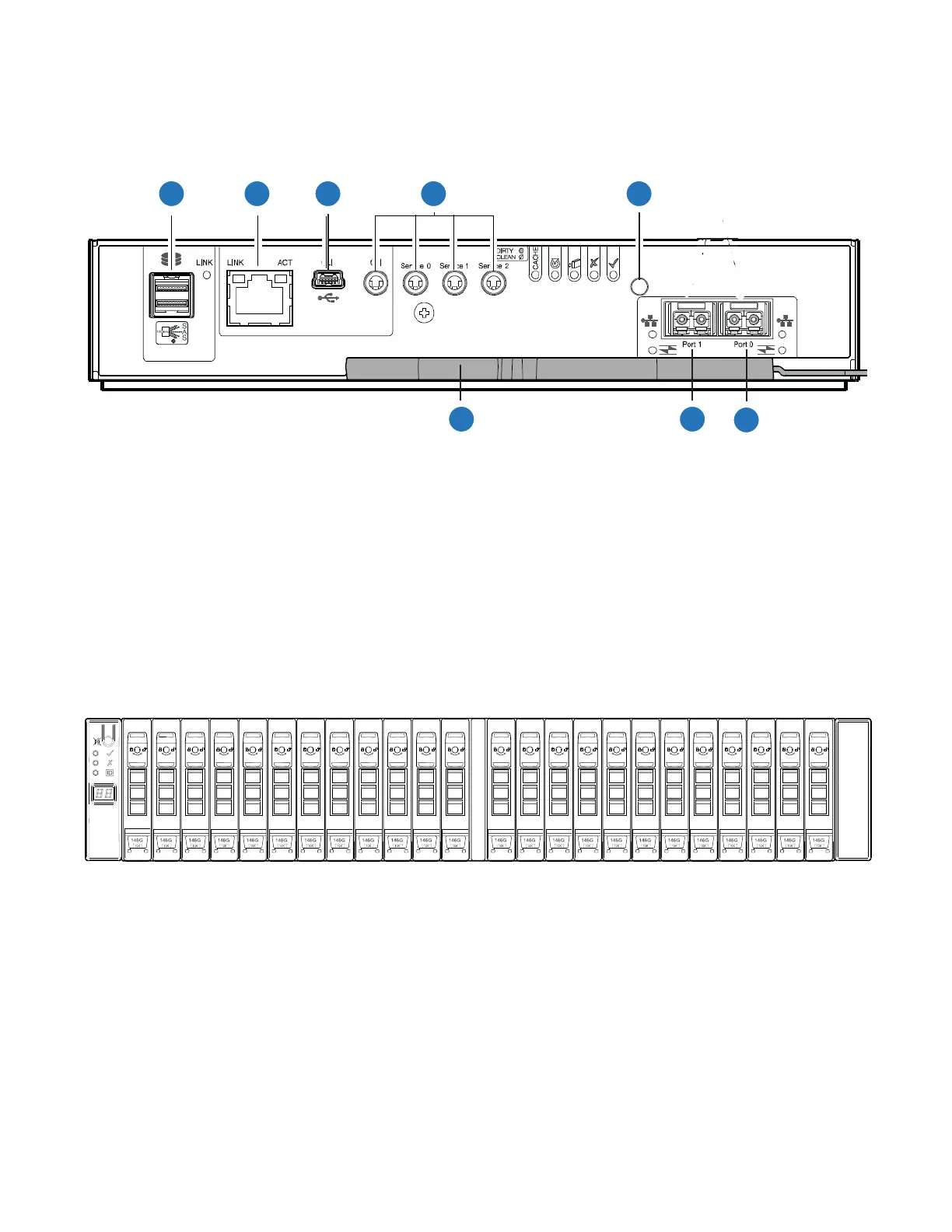

Figure 24 provides a rear view of the CNC FC/iSCSI controller used in the 2U24-drive systems. You can
configure the CNC host interface ports (Ports 0 and 1) with 8/16Gb/s FC SFPs; 10GbE iSCSI SFPs; or
1Gb/s RJ-45 SFPs.
Figure 24 CNC FC/iSCSI Controller
QXS-424 12G 2U24-Drive Chassis Front View
Integers on the drives indicate drive slot numbering sequence (0-23). Figure 25 provides a front view
of the 2U24-drive chassis.
Figure 25 2U24-Drive Chassis Front View
QXS-424 12G 2U24-Drive RAID Chassis Rear View
Refer to the numbers on the CRUs, Figure 26, and the table to identify components within the 2U24
chassis. PSU and controller modules are available as CRUs. The RAID chassis use 4-port controller
modules. Use expansion chassis for optionally added storage.
41 2
3
8 7
6
5
1
SAS Port
2
Ethernet Port
3
USB Port
4
Serial Ports (service only)
5
Reset
6
CNC Port 0
7
CNC Port 1
8
Lock/Release Handle
01
2345
6
78
9
10 11 12 13 14 15
16 17
18
19 20
21 22
23
