QXS-312/412 12G System Specifications 13
2U12-Drive RAID and Expansion Chassis Weight
Tab l e 7 identifies the weight of the QXS-312/412 12G, 2U12-drive RAID and expansion chassis.
Bezel
The 2U12 drive chassis includes a bezel sub-assembly that attaches to the front panel of the chassis.
The bezel, comprised of a vented cover attached to an electro-magnetic interference (EMI) shield, is
pre-assembled and packed within a box contained in the enclosure master shipping container.
Instructions for attaching/removing the bezel are provided in the
QXS 12G Hardware Installation and
Maintenance Guide
.
CAUTION: The bezel should be properly installed while the chassis is in operation to ensure
adequate EMI protection for the drives.
QXS-312 12G 2U12-Drive Chassis Front View
Integers on the drives indicate drive slot numbering sequence (0-11). Figure 11 provides a front view
of the 2U12-drive chassis.

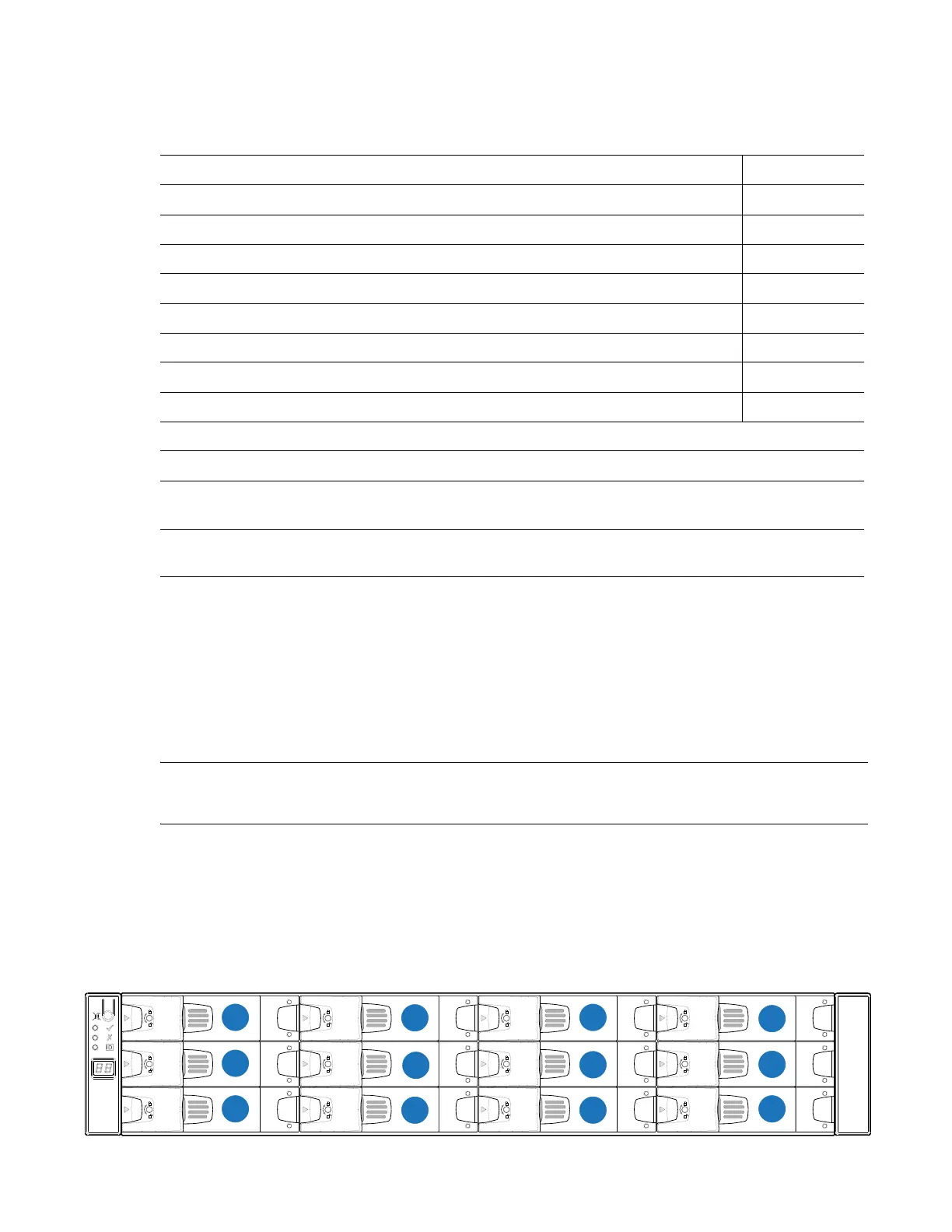

Figure 11 2U12-Drive Chassis Front View
Ta b le 7 Chassis Weights
CRU/Component 2U12 (kg/lb)
Storage chassis (empty) 4.8/10.56
Disk drive carrier 0.9/1.98
Dummy disk drive carrier (air management sled) 0.05/0.11
2U Power Supply Unit (PSU) 3.5/7.7
Controller (module in RAID chassis) 2.6/5.8
Expansion IOM (module in expansion chassis) 1.5/3.3
RAID chassis (fully populated with modules: maximum weight) 32/71
Expansion chassis (fully populated with modules: maximum weight) 28/62
Note 1: Weights shown are nominal, and subject to variances.
Note 2: 2U rail kits add between 2.8 kg (6.2 lb) and 3.4 kg (7.4 lb) to the aggregate chassis weight.
Note 3: Weights may vary due to different power supplies, controllers/expansion IOMs, and differ-
ing calibrations between scales.
Note 4: Weights may vary due to actual number and type of drives (SAS or SSD) and air manage-
ment modules installed.
