QXS System and Cabinet Information 1
Chapter 1
QXS System and Cabinet Information
This chapter provides the following information:
• QXS-312 12G and QXS-324 12G 12G Chassis
• QXS-412 12G and QXS-424 12G Chassis
• QXS-484 12G Chassis
• General Cabinet Information
• QXS-312/324/412/424/484 12G Chassis Supported Configurations
QXS-312 12G and QXS-324 12G 12G Chassis
This section provides general information for the following chassis:
• QXS-312 12G: 12-Drive System (2-Port: FC or iSCSI)
• QXS-324 12G: 24-Drive System (2-Port: FC or iSCSI)
Chassis with Bezels Installed
The front of the 12 and 24-drive chassis are 2U high (3.5 inches/88.9mm) and use the same bezel
(2U). Refer to Figure 1 for images of the chassis with bezels installed.

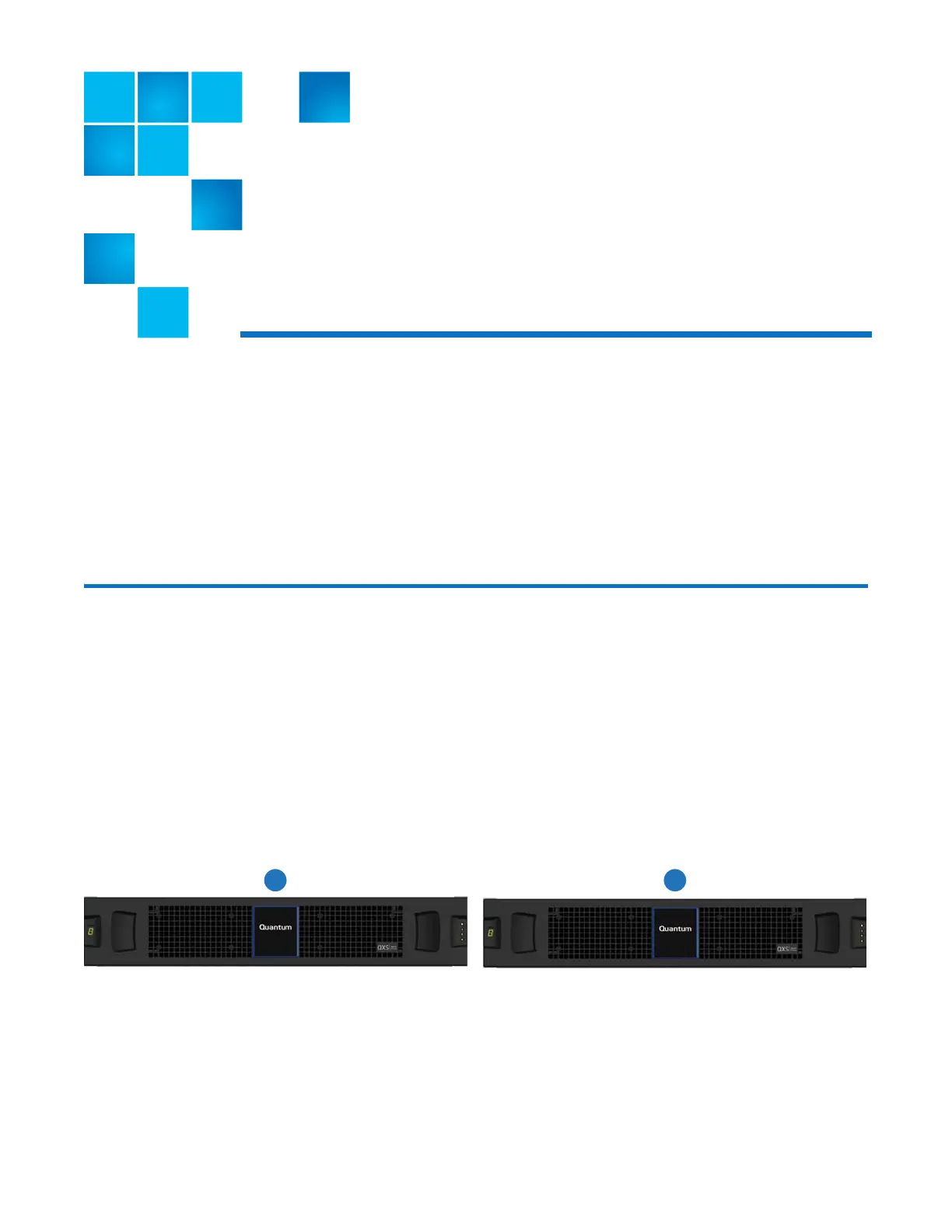

Figure 1 System Front View (with Bezel)
1 QXS-312 12G 12-Drive Chassis (2U high) 2 QXS-324 12G: 24-Drive Chassis (2U high)
