QXS System and Cabinet Information 3
Chassis with Bezels Removed

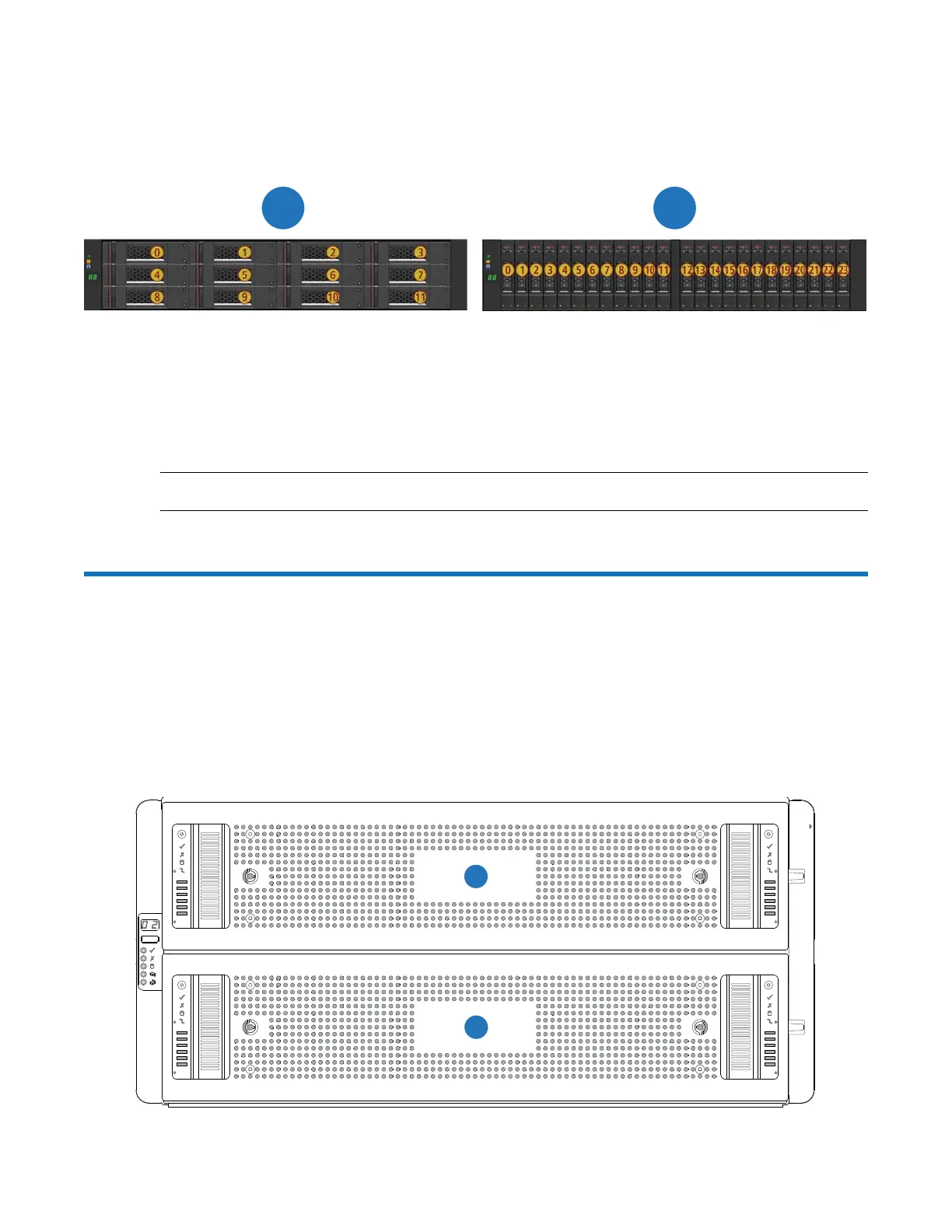

Figure 4 provides images of the front of the 12 and 24-drive chassis with the bezels removed.
Figure 4 Chassis Front View (Bezel Removed)
NOTE: The QXS-412 12G and QXS-424 12G systems ship with drives installed.
QXS-484 12G Chassis
This section provides general information for the QXS-484 12G, 84-Drive System (4-Port: FC or iSCSI).
Chassis with Bezels Installed
The front of the 84-drive chassis is 5U high (8.75 inches/222.25mm) and uses a bezel for each drawer.
Refer to Figure 5 for images of the chassis with bezels installed for Drawer 0 and Drawer 1.
Figure 5 System Front View (with Bezel)
1 QXS-412 12G: 12-Drive Chassis
•2U high
• 12 drives installed (Labeled 0-11)
• 4-host ports per controller
2 QXS-424 12G: 24-Drive Chassis
•2U high
• 24 drives installed (Labeled 0-23)
• 4-host ports controller
1
2
1 Drawer 0 2 Drawer 1
