24 QXS 12G Site Planning Guide
QXS-324 12G 2U24-Drive Chassis Front View
Integers on the drives indicate drive slot numbering sequence (0-23). Figure 22 provides a front view
of the 2U24-drive chassis.

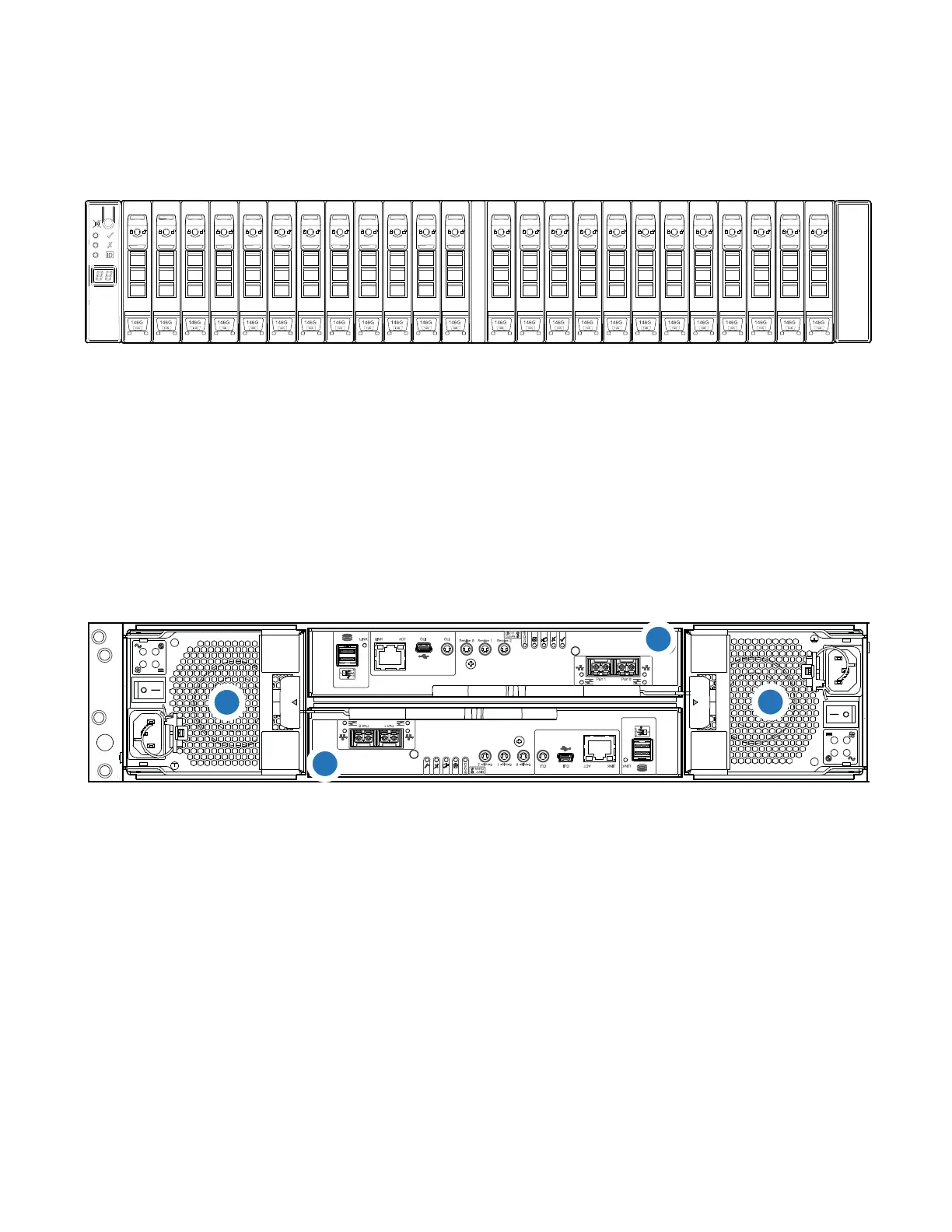

Figure 22 2U24-Drive Chassis Front View
QXS-324 12G 2U24-Drive RAID Chassis Rear View
Refer to the numbers on the CRUs, Figure 23, and the table to identify components within the 2U24
chassis. PSU and controller modules are available as CRUs. The RAID chassis use 2-port controller
modules. Use expansion chassis for optionally added storage.
RAID Chassis (CNC Controllers and 2FC/iSCSI ports)
Figure 23 provides a rear view of the 2U24-drive RAID chassis with two CNC controllers (2 FC/iSCSI
ports).
Figure 23 2U24-Drive RAID Chassis (2 FC/iSCSI ports)
CNC FC/iSCSI Controller
Callout 1, Figure 23, is the Controller A location. Callout 2, Figure 23, is the Controller B location.
Both controllers are shown in the closed/locked position.
01
2345
6
78
9
10 11 12 13 14 15
16 17
18
19 20
21 22
23
1
2
3
4
1
Controller A
2
Controller B
3
PSU0
4
PSU1
