QXS-324/424 12G System Specifications 27

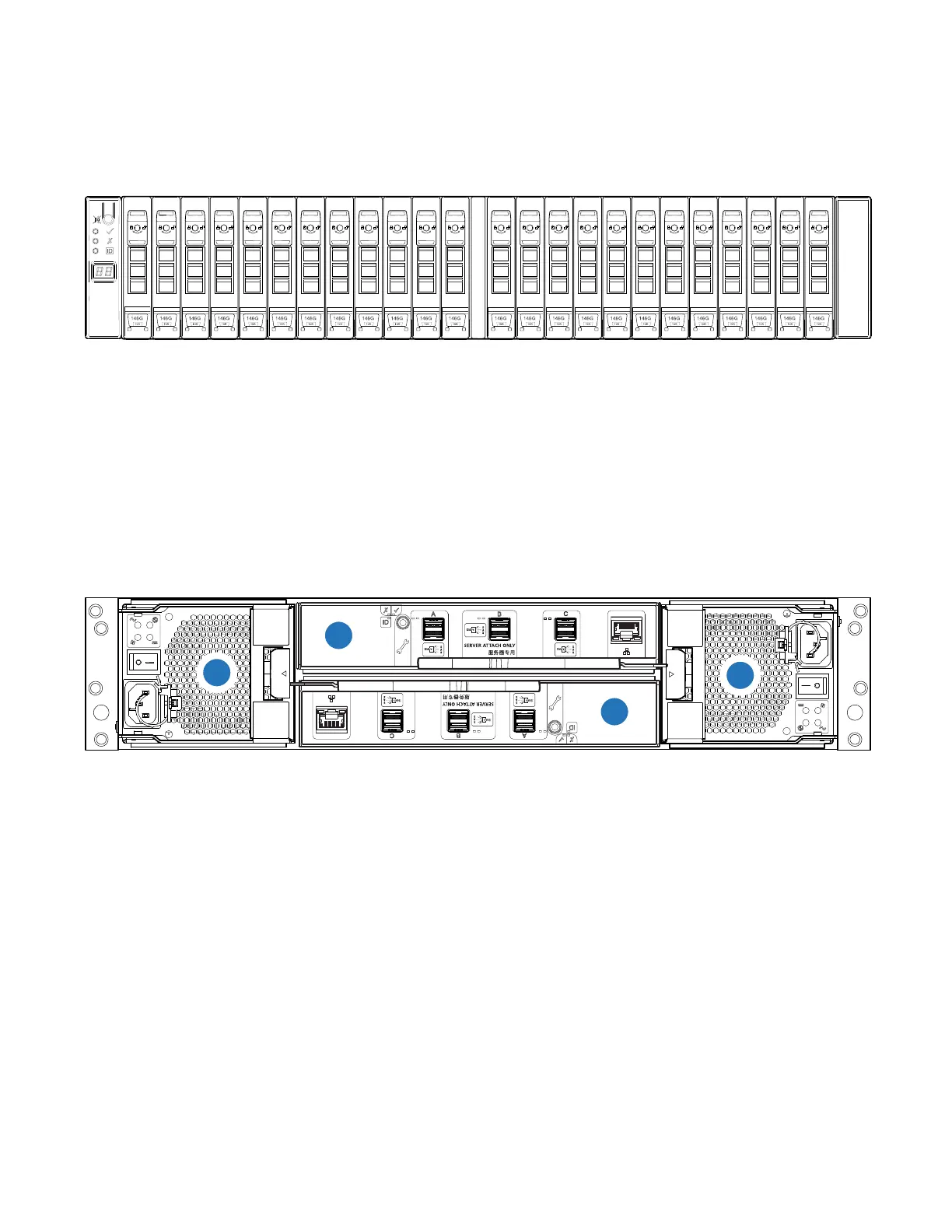

2U24-Drive Expansion Chassis Front View
Integers on the drives indicate drive slot numbering sequence (0-23). Figure 28 provides a front view
of the 2U24-drive chassis.
Figure 28 2U24-Drive Chassis Front View
2U24-Drive Expansion Chassis Rear View
The top middle slot, Figure 29, is the Expansion IOM A location. The lower middle slot is the
Expansion IOM B location. Both IOMs are shown in the closed/locked position.
Expansion Chassis
Figure 29 provides a rear view of the 2U24-drive expansion chassis rear panel. The expansion chassis
attaches to the RAID chassis for additional storage.
Figure 29 2U24-Drive Expansion Chassis Rear View
01
2345
6
78
9
10 11 12 13 14 15
16 17
18
19 20
21 22
23
1
2
3
4
1
IOM A
2
IOM B
3
PSU0
4
PSU1
