26 QXS 12G Site Planning Guide
RAID Chassis (CNC Controllers and 4 FC/iSCSI ports)

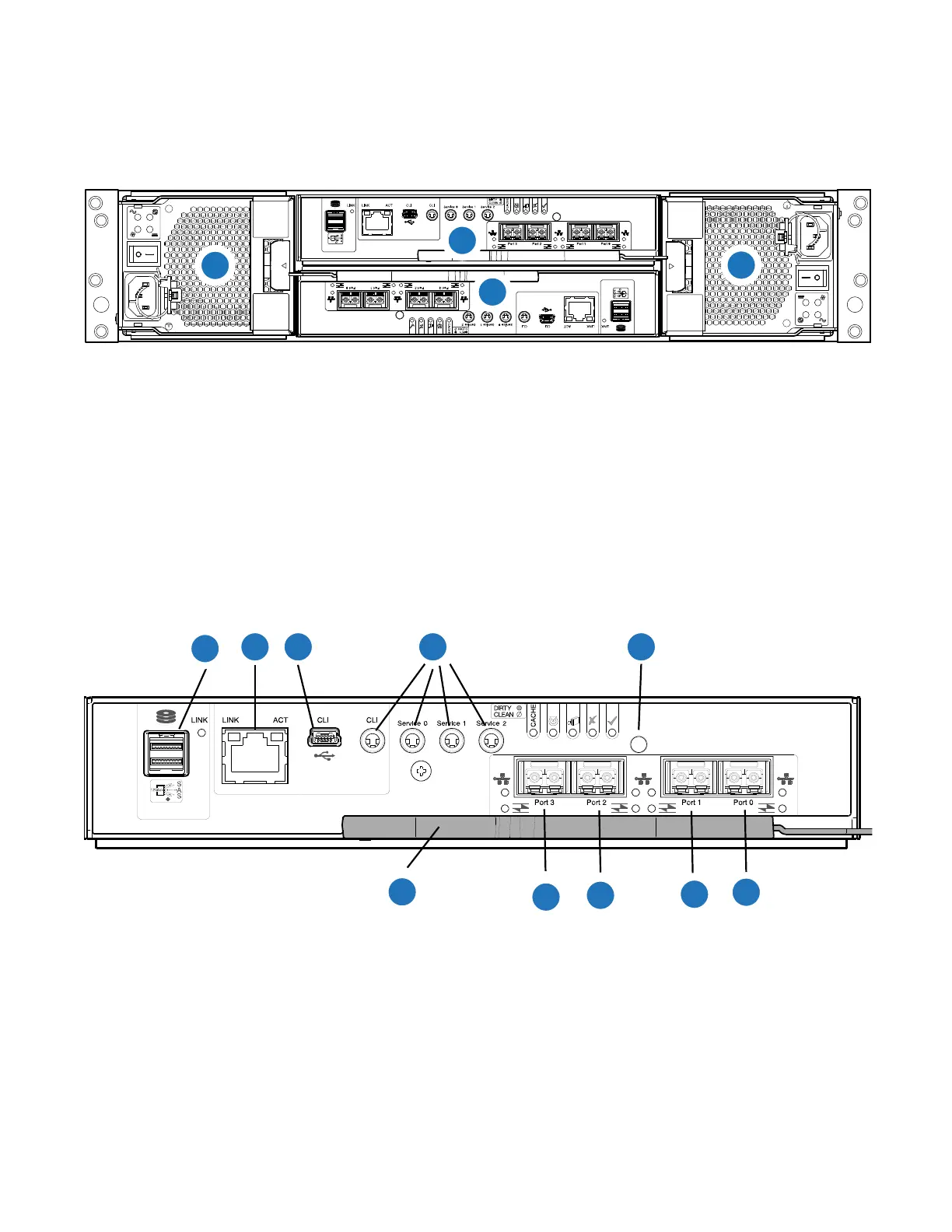

Figure 26 provides a rear view of the 2U24-drive RAID chassis with two CNC controllers (4 FC/iSCSI
ports).
Figure 26 2U24-Drive RAID Chassis (4 FC/iSCSI ports)
CNC FC/iSCSI Controller
Callout 1, Figure 26, is the Controller A location. Callout 2, Figure 26, is the Controller B location.
Both controllers are shown in the closed/locked position.
Figure 27 provides a rear view of the CNC FC/iSCSI controller used in the 2U24-drive systems. You can
configure the CNC host interface ports (Ports 0, 1, 2 and 3) with 8/16Gb/s FC SFPs; 10GbE iSCSI SFPs;
or 1Gb/s RJ-45 SFPs.
Figure 27 CNC FC/iSCSI Controller
1
Controller A
2
Controller B
3
PSU0
4
PSU1
2 3 4 5
1
6
7
8
9
10
1
SAS Port
2
Ethernet Port
3
USB Port
4
Serial Ports (service only)
5
Reset
6
CNC Port 0
7
CNC Port 1
8
CNC Port 2
9
CNC Port 3
10
Lock/Release Handle
