38 QXS 12G Site Planning Guide
5U84 RAID Chassis (Rear View/Two CNC Controllers)
Figure 35 provides an illustration of the 5U84 RAID chassis rear view with two CNC controllers
(FC/iSCSI, 4-ports) installed.
NOTE: The 5U84 RAID chassis supports attachment of expansion chassis for adding storage.
Refer to Figure 35 for all the 5U84 Raid chassis CRUs with CNC controllers.

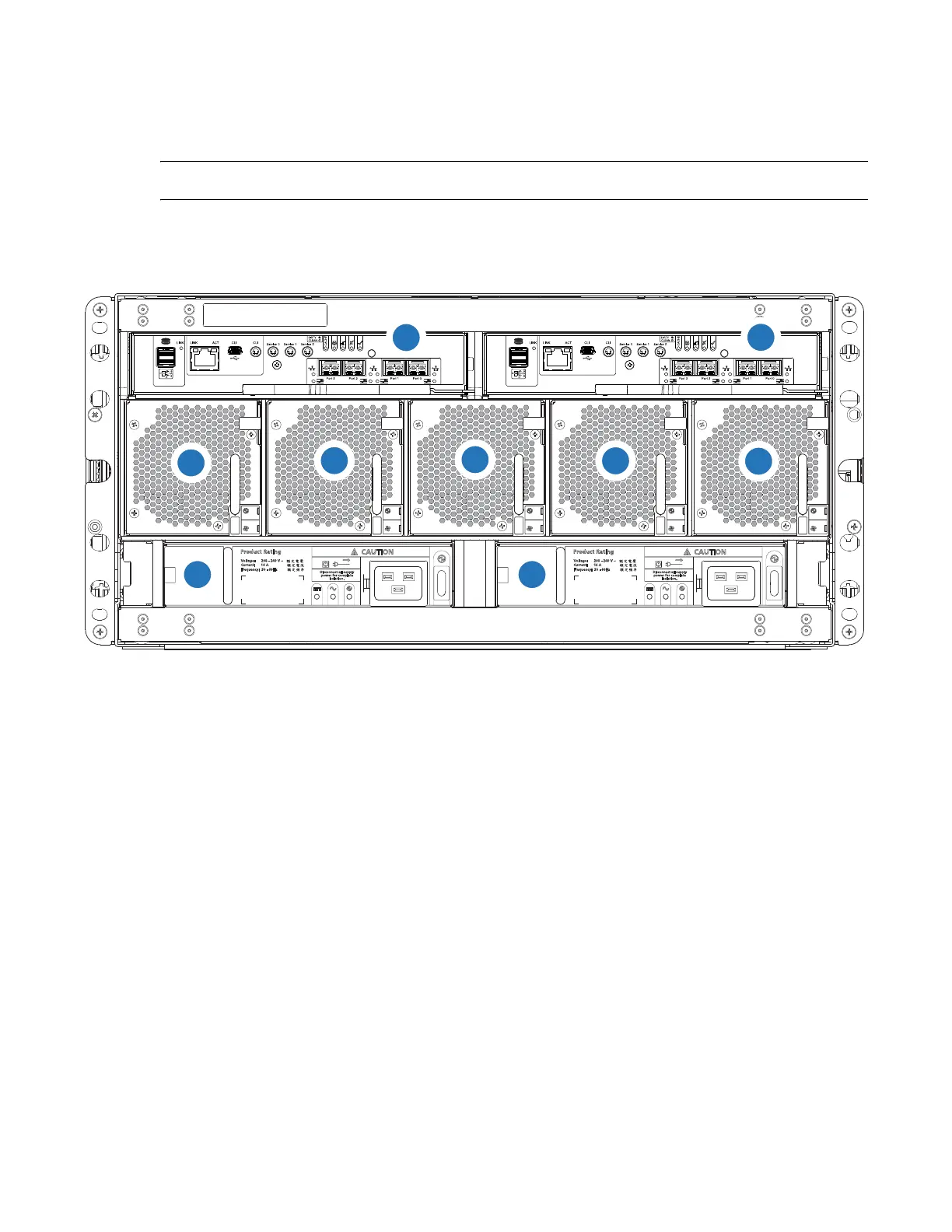

Figure 35 5U84 RAID Chassis Rear View (CNC Controllers)
1
2
3
4
5
6
7
8 9
1
Controller A
2
Controller B
3
Fan 0
4
Fan 1
5
Fan 2
6
Fan 3
7
Fan 4
8
PSU 0
9
PSU 1
