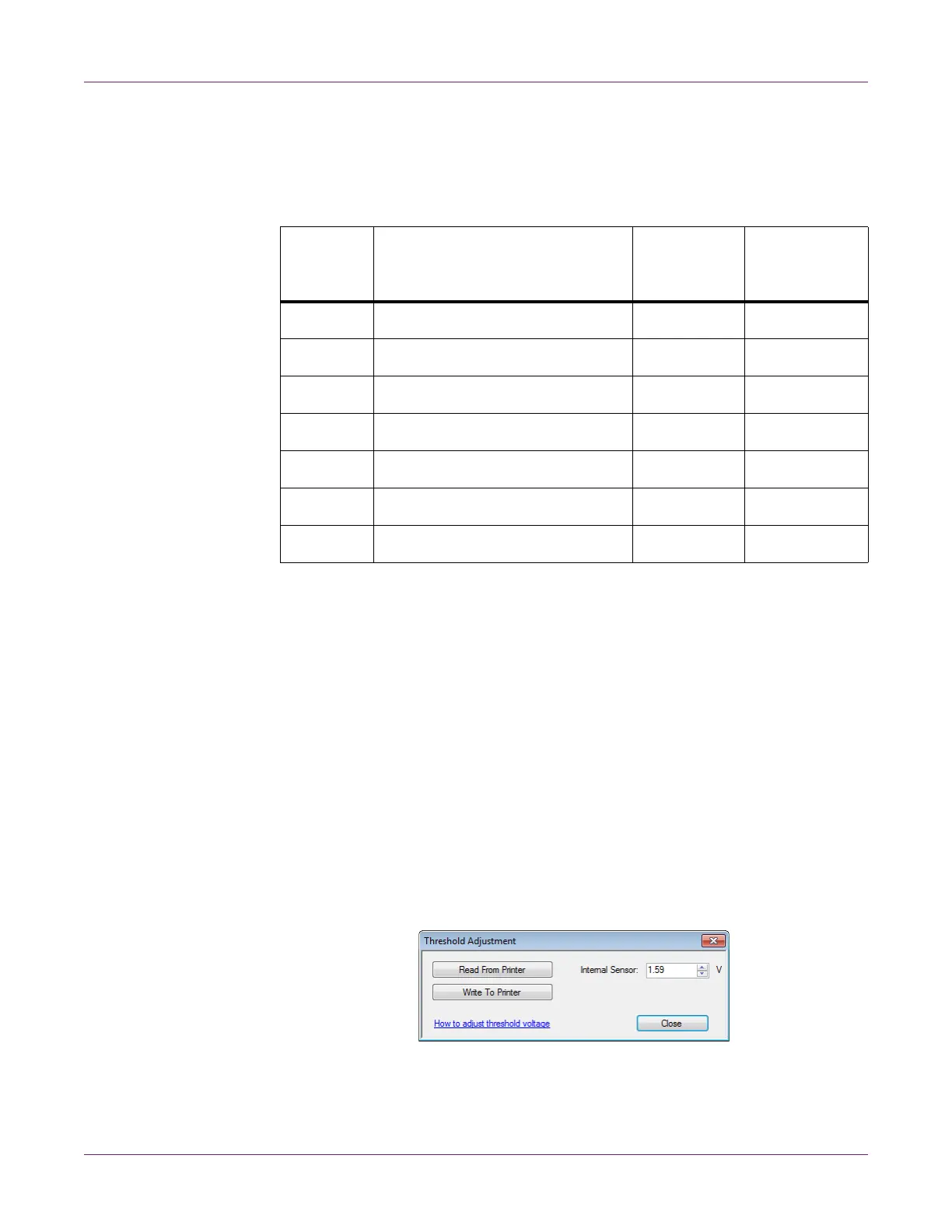

Adjusting the Top-of-Form Threshold
If any of the following errors occur while using reflective mark media, you may need to
calibrate the top-of-form sensor threshold. The following table describes the types of
adjustments needed for each error condition.
Note: Before adjusting the top-of-form threshold, verify that your media has been
loaded and configured correctly.
If you have already adjusted the top-of-form threshold for your reflective mark media,
and you are replacing a reflective mark media roll with an identical roll, repeating this
adjustment is not necessary.
1 Launch the Kiaro! 50 Maintenance Utility.
From the Windows Start Menu, choose Start > All Programs > QuickLabel
Kiaro! 50 > Kiaro! 50 Maintenance Utility. A language and printer prompt will
open.
Select a display language and the Kiaro! 50 printer you want to connect to. Choose
OK.
2 Choose the Adjustments tab.
3 Choose Threshold Adjustment. The Threshold Adjustment window will open.
4 To read the internal sensor value from the printer and set the Internal Sensor
control accordingly, choose Read From Printer.
Error # Error Name
Internal
Sensor
Adjustment
Adjustment
Value
5002 No paper Increase +0.1V
5103 Paper length difference Increase +0.1V
5105 Paper length difference Increase +0.1V
5305 Gap/Mark length Increase +0.1V
5404 Paper jam Increase +0.1V
5401 Paper jam Decrease -0.1V
5402 Paper jam Decrease -0.1V
