R&S FSH series User Manual

33
E-02

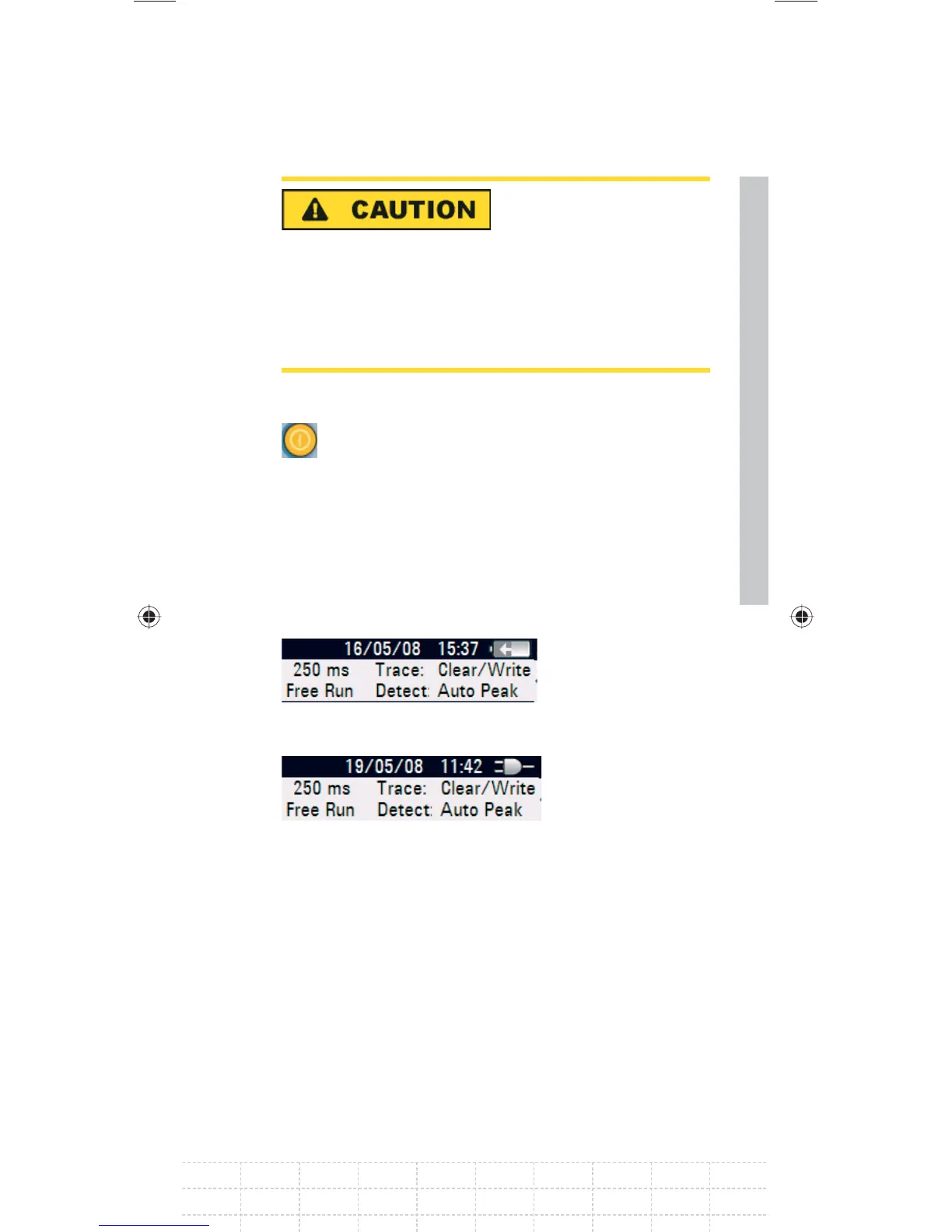

Turn off the R&S FSH while driving or while the
engine is on.
Operation of the R&S FSH via the cigarette lighter
socket while driving or while the engine is on is
prohibited.
To switch on the R&S FSH, press the yellow button
at the bottom left of the front panel.
The R&S FSH displays an arrow within the battery
charge status indicator at the top right of the
display to show that it is connected to the mains
and is charging. If the battery is fully charged, a
plug icon is displayed instead of the battery icon.
Battery is chargingFig.:
R&S FSH is being powered by the AC supply and Fig.:
the battery is fully charged
When the R&S FSH is switched on, it recalls the
settings that it was using when it was last switched
off.
GalaxyE_v1-10_3.indd 33GalaxyE_v1-10_3.indd 33 08.04.2009 15:21:4008.04.2009 15:21:40

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
