R&S FSH series User Manual

42
PD 1309.6269.62-02
Active equipment under test can be supplied with
power via the BIAS Port 1 and BIAS Port 2 direct
current inputs. Direct current is supplied with the
assistance of a suitable power adapter (600 mA
max. / 50 V max.).
Risk of damage to the instrument
Never apply currents above> 600 mA or voltages
above 20 V to the BNC sockets if the BNC
connectors are not confi gured as BIAS input ports.
If the BNC connectors are confi gured as BIAS
input ports never apply currents above> 600 mA or
voltages above 50 V.

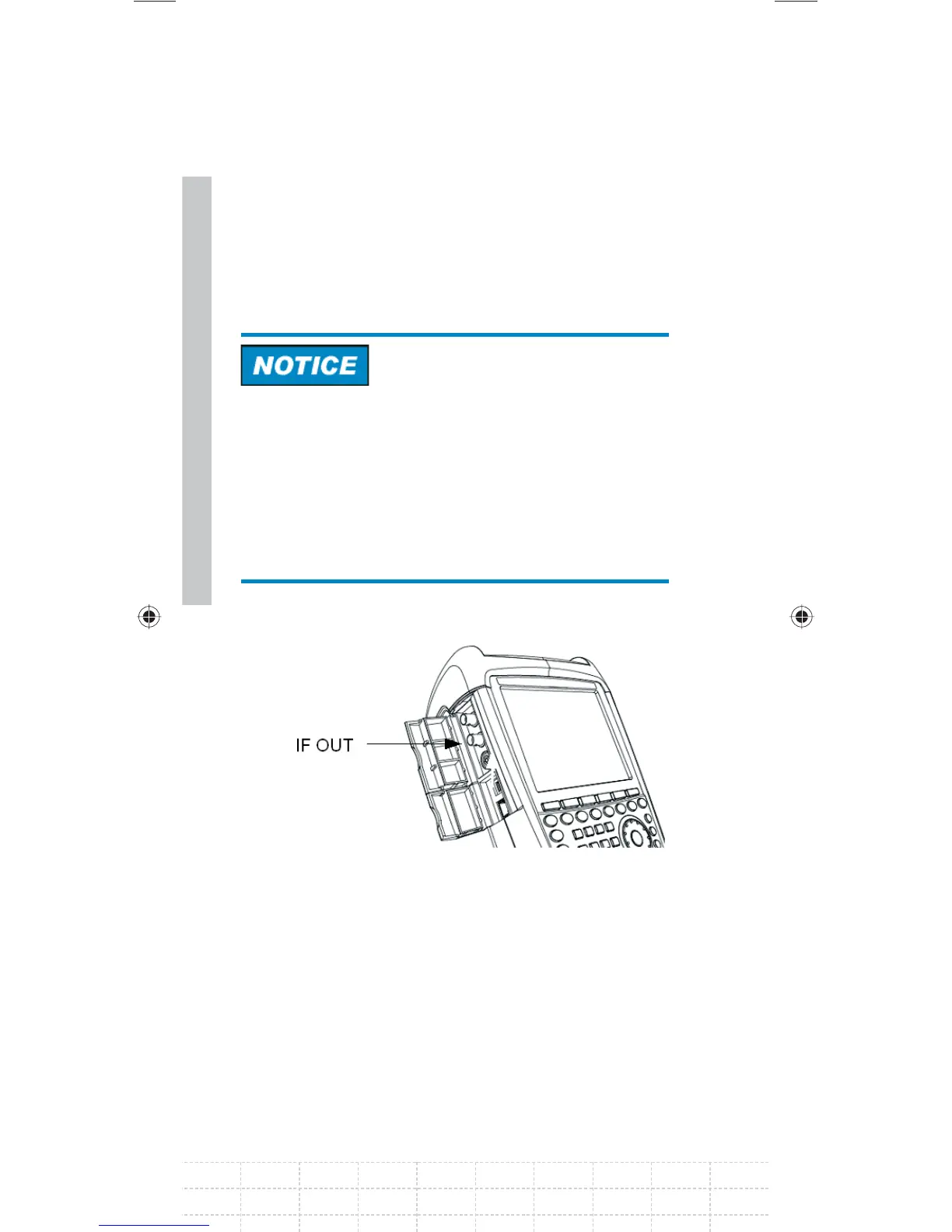

IF output (IF-Out)/Video Out
The BNC socket shown in the diagram above can
be used as an intermediate frequency output
(21.4 MHz) or a video output.
GalaxyE_v1-10_3.indd 42GalaxyE_v1-10_3.indd 42 08.04.2009 15:21:4208.04.2009 15:21:42

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
