R&S FSH series User Manual

43
E-02
Risk of damage to the instrument
Never apply currents above> 600 mA or voltages
above 20 V to the BNC sockets if the BNC
connectors are not confi gured as BIAS input ports.
If the BNC connectors are confi gured as BIAS
input ports never apply currents above> 600 mA or
voltages above 50 V.

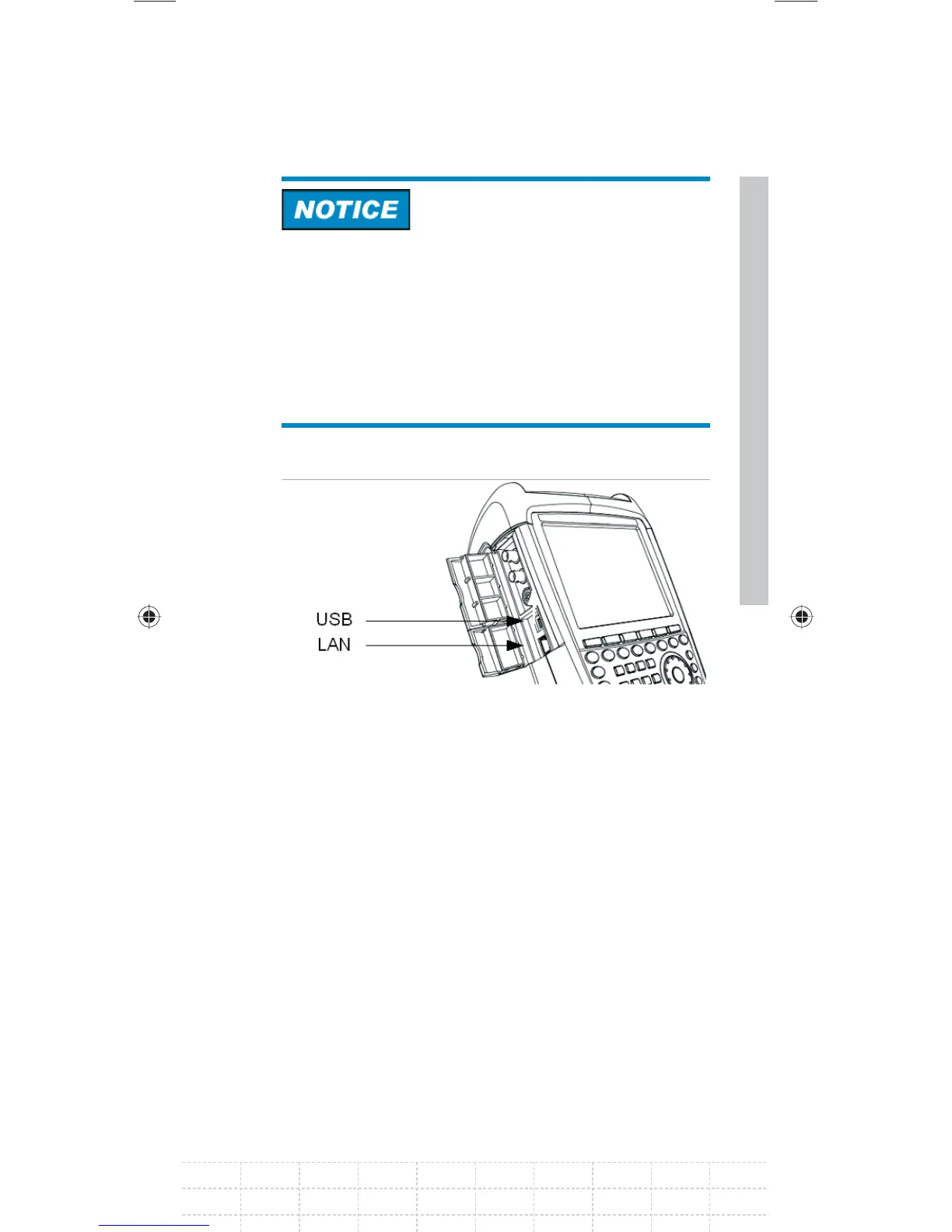

USB and LAN interface
The R&S FSH can be connected to a computer
via either a USB or a LAN interface for data
transfer. The interfaces are on the left side below
a protective cover (see fi gure above). A USB cable
and a LAN connection cable for direct connection
to the computer are supplied. The LAN interface is
confi gured via the SETUP key.
GalaxyE_v1-10_3.indd 43GalaxyE_v1-10_3.indd 43 08.04.2009 15:21:4208.04.2009 15:21:42

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
