DC connection for supply from the external AC
power supply

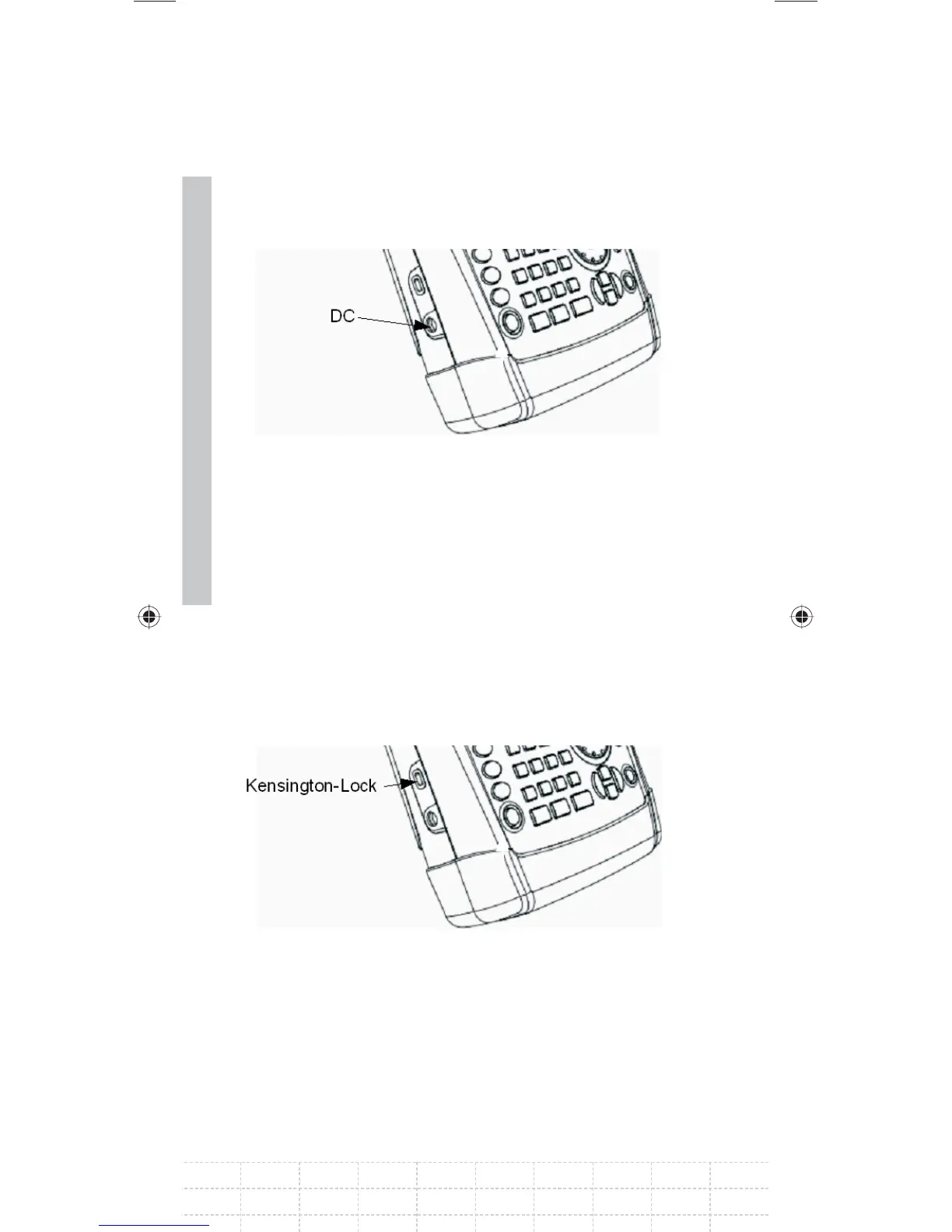

The R&S FSH is supplied with current by the AC/DC
transformer power supply via the DC connection,
and the R&S FSH battery is charged.
The internal battery can also be charged from
a vehicle’s cigarette lighter socket. The adapter
required is available as an accessory for the R&S
FSH (R&S HA-Z202, order no. 1309.6117.00).
Mechanical locking device
A Kensington Lock can be anchored in the R&S
FSH housing to mechanically secure the R&S FSH
to a workstation.
GalaxyE_v1-10_3.indd 44GalaxyE_v1-10_3.indd 44 08.04.2009 15:21:4208.04.2009 15:21:42

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
