R&S FSH series User Manual

72
PD 1309.6269.62-02
 Confi rm with ENTER or the RF ATT/AMP/IMP
softkey.
The current attenuation value for the RF attenuator
is displayed in the status bar at the upper edge of
the screen below the Att: caption.

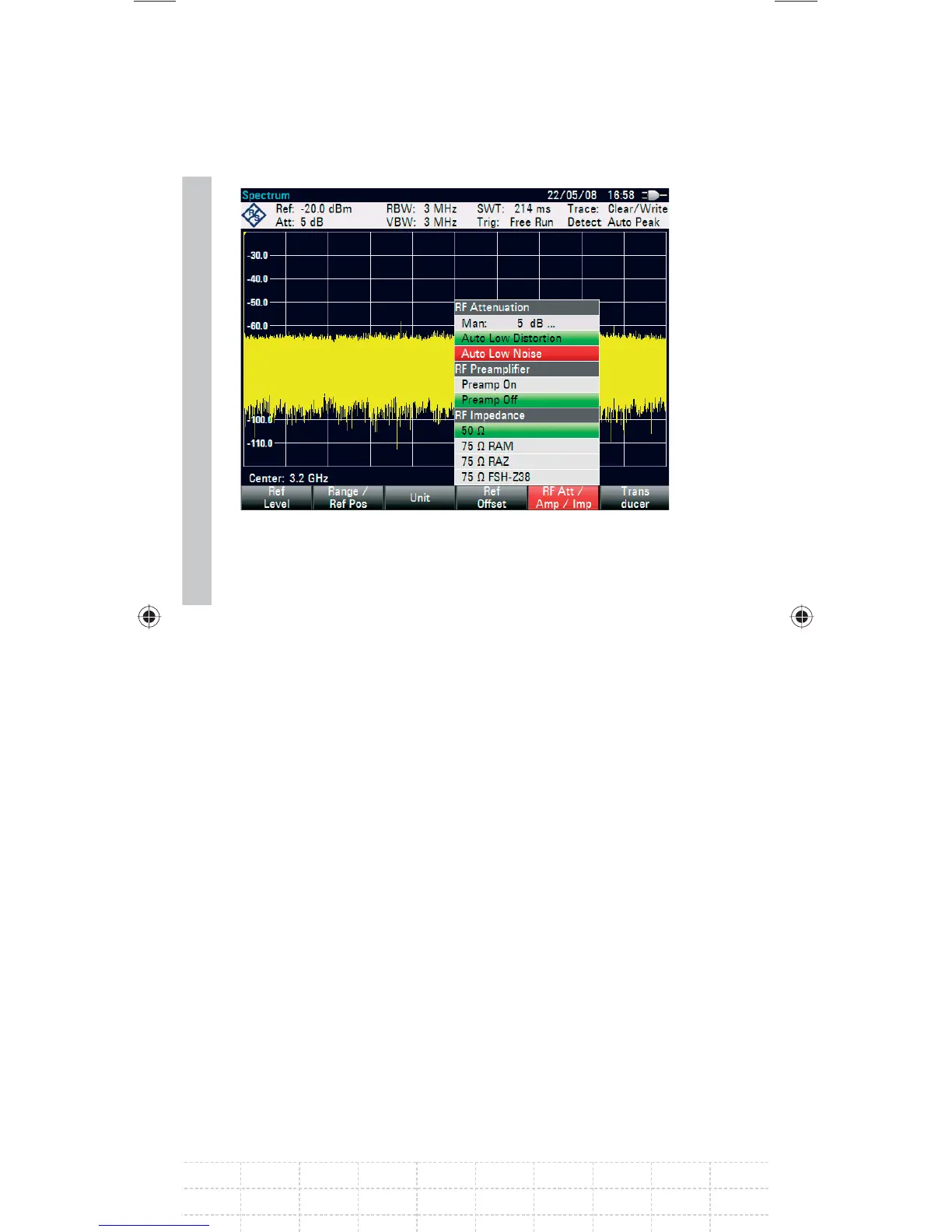

To set the attenuator manually, proceed as follows:
 Press the AMPT key.
 Press the RF ATT/AMP/IMP softkey.
 Select the MAN: sub-item below the
RF ATTENUATION menu item with the rotary
knob or the cursor keys.
 Confi rm with ENTER.
GalaxyE_v1-10_3.indd 72GalaxyE_v1-10_3.indd 72 08.04.2009 15:21:4608.04.2009 15:21:46

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
