R&S FSH series User Manual

78
PD 1309.6269.62-02
 Press the FREQ key.
 Enter ‘700’ using the numeric keypad and
confi rm the entry with the MHz key.
 Press the SPAN key.
 Enter ‘10’ using the numeric keypad and
confi rm the entry with the MHz key.

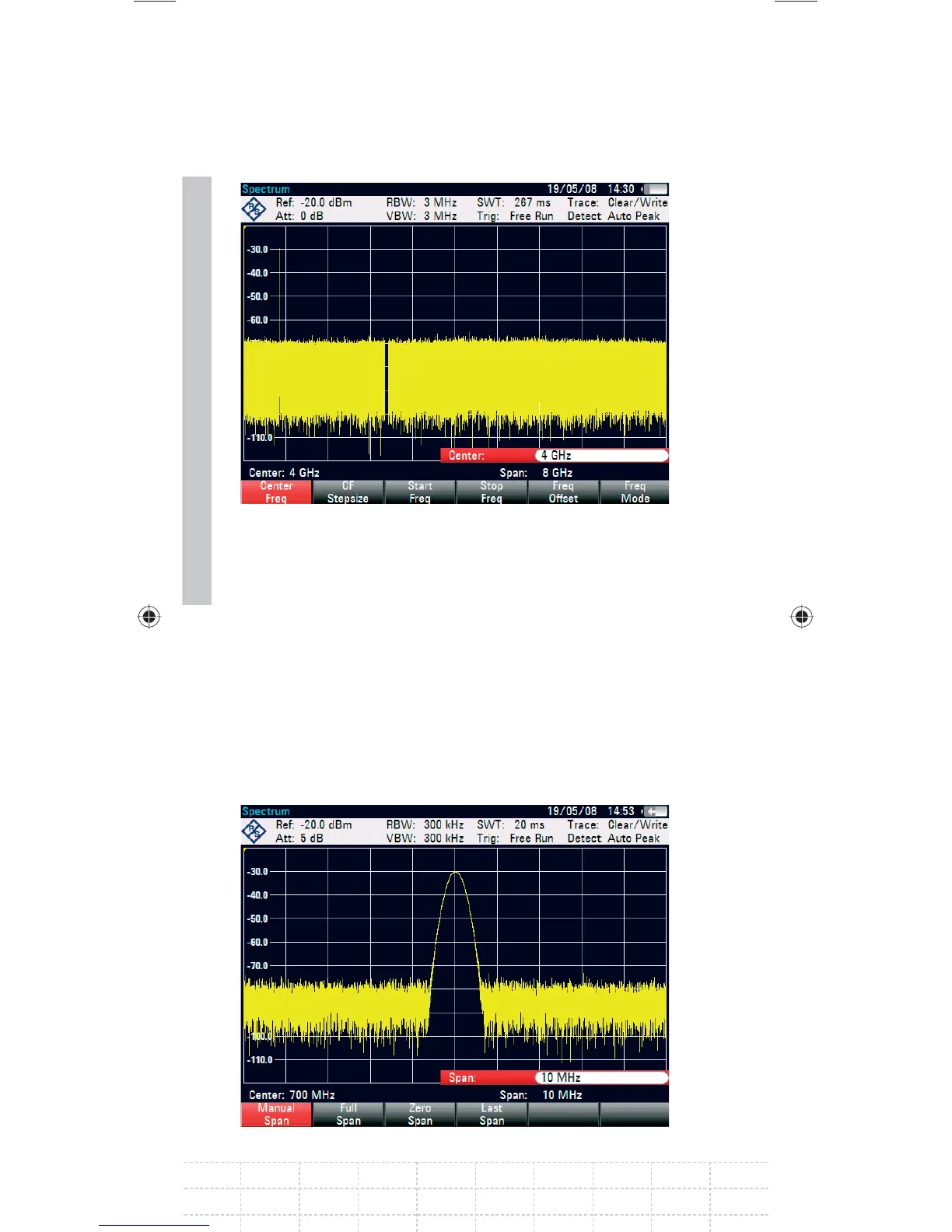

The R&S FSH now displays the generator signal
with a higher resolution.
GalaxyE_v1-10_3.indd 78GalaxyE_v1-10_3.indd 78 08.04.2009 15:21:4808.04.2009 15:21:48

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
