R&S FSH series User Manual

86
PD 1309.6269.62-02
Risk of damage to the sensor due to high input
power
The continuous power applied to the power •
sensor’s input must not exceed 400 mW (26
dBm).
Use an attenuator for measurements on high-•
power transmitters.
However, brief (≤10 µs) power peaks up to 1 W
(30 dBm) are permissible.
 Connect the power sensor cable to the
R&S FSH’s power sensor connector and screw
into position.

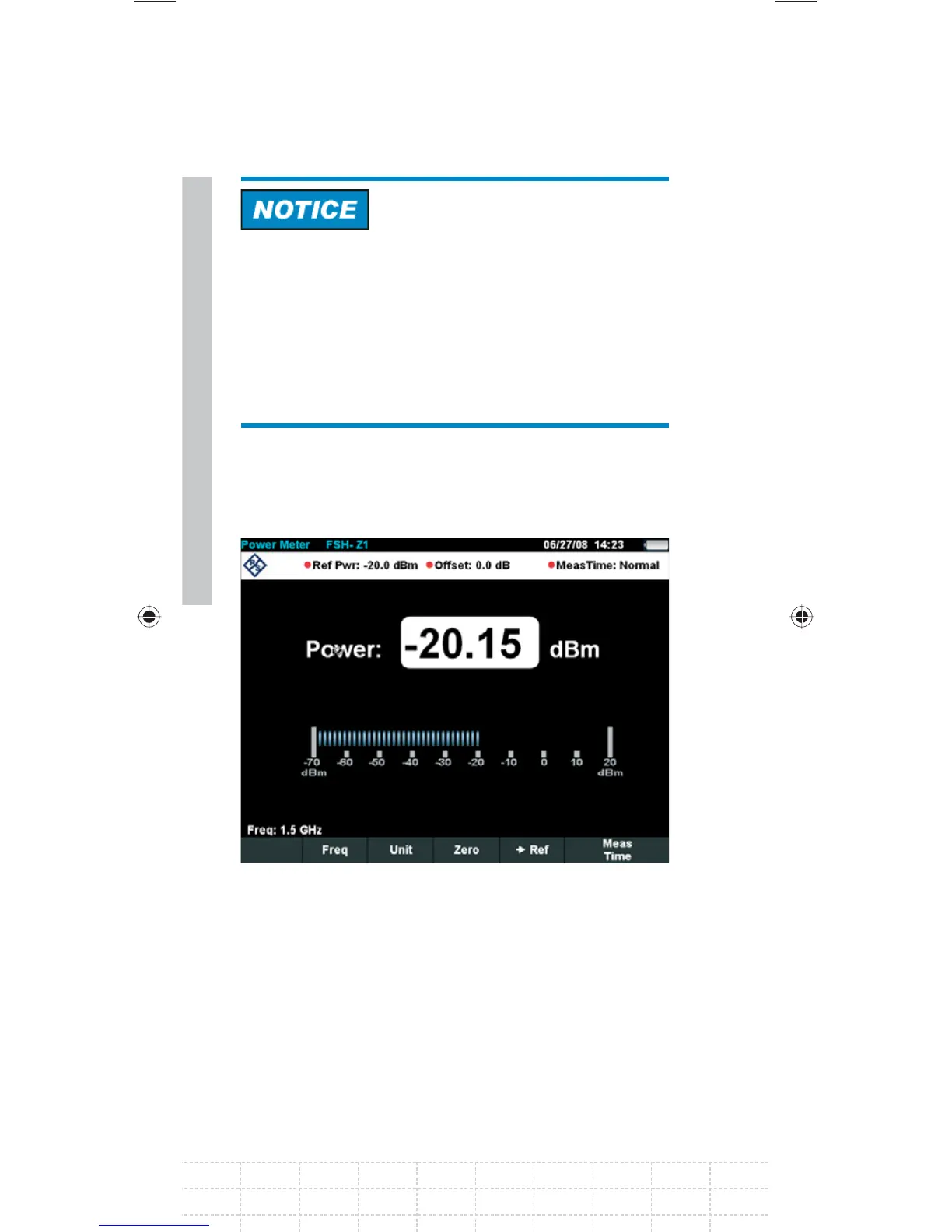

 Press the MODE key.
 Press the POWER METER softkey.
GalaxyE_v1-10_3.indd 86GalaxyE_v1-10_3.indd 86 08.04.2009 15:21:4908.04.2009 15:21:49

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
